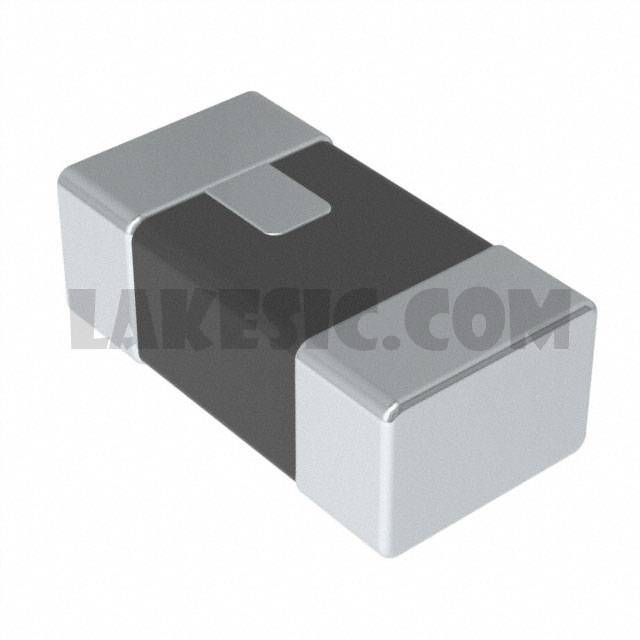

LQM18JNR16J00D

Part NumberLQM18JNR16J00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 160NH 550MA 600 MOHM

DatasheetLQM18JNyyyy00D Spec

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description160nH Shielded Multilayer Inductor 550mA 600mOhm 0603 (1608 Metric)

To learn about the specification of LQM18JNR16J00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM18JNR16J00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM18JNR16J00D.
We are offering LQM18JNR16J00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM18JNR16J00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM18JNyyyy00D Spec
Standard Package	4000
Manufacturer	Murata Electronics North America
Series	LQM18
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	160nH
Tolerance	±5%
Current Rating (Amps)	550mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	600mOhm
Q @ Freq	8 @ 25MHz
Frequency - Self Resonant	100MHz
Ratings	AEC-Q200
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	25MHz
Features	-
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.026" (0.65mm)
