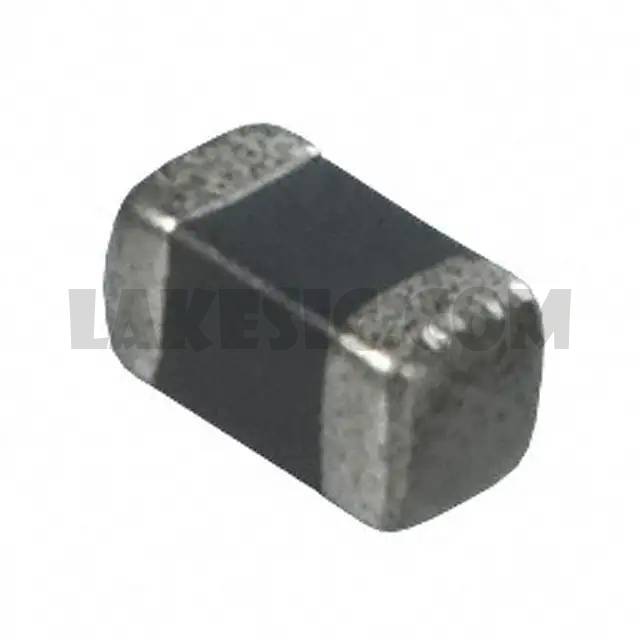

LQM18NNR68K00D

Part NumberLQM18NNR68K00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 680NH 35MA 1.7 OHM SMD

DatasheetLQM18Nyyyy00D Spec

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680nH Shielded Multilayer Inductor 35mA 1.7Ohm Max 0603 (1608 Metric)

To learn about the specification of LQM18NNR68K00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM18NNR68K00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM18NNR68K00D.
We are offering LQM18NNR68K00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM18NNR68K00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM18Nyyyy00D Spec
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQM18
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	680nH
Tolerance	±10%
Current Rating (Amps)	35mA
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	1.7Ohm Max
Q @ Freq	15 @ 25MHz
Frequency - Self Resonant	90MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	25MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.035" (0.90mm)
