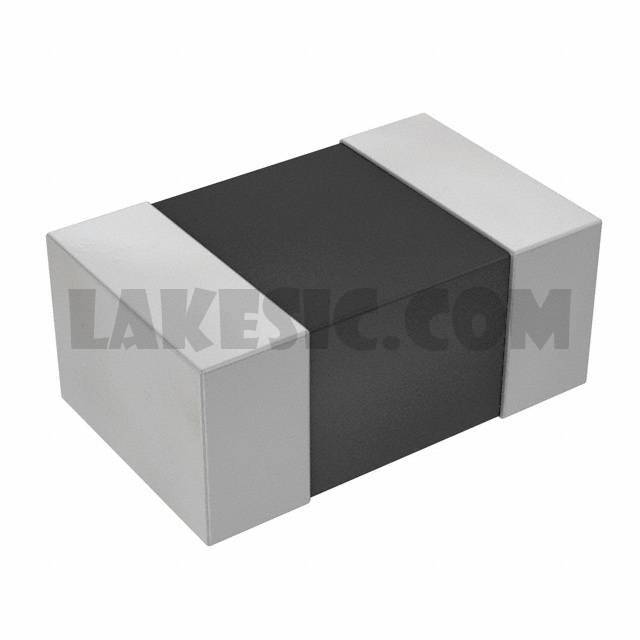

LQM21PN1R0MGHL

Part NumberLQM21PN1R0MGHL

ManufacturerMurata Electronics North America

DescriptionFIXED IND 1UH 1.7A 100 MOHM SMD

DatasheetLQM21PNyyyyGHL Ref Sheet

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Shielded Multilayer Inductor 1.7A 100mOhm Max 0805 (2012 Metric)

To learn about the specification of LQM21PN1R0MGHL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM21PN1R0MGHL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM21PN1R0MGHL.
We are offering LQM21PN1R0MGHL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM21PN1R0MGHL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM21PNyyyyGHL Ref Sheet
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQM21
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	1.7A
Current - Saturation	1.1A
Shielding	Shielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	-
Frequency - Self Resonant	60MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.039" (1.00mm)
