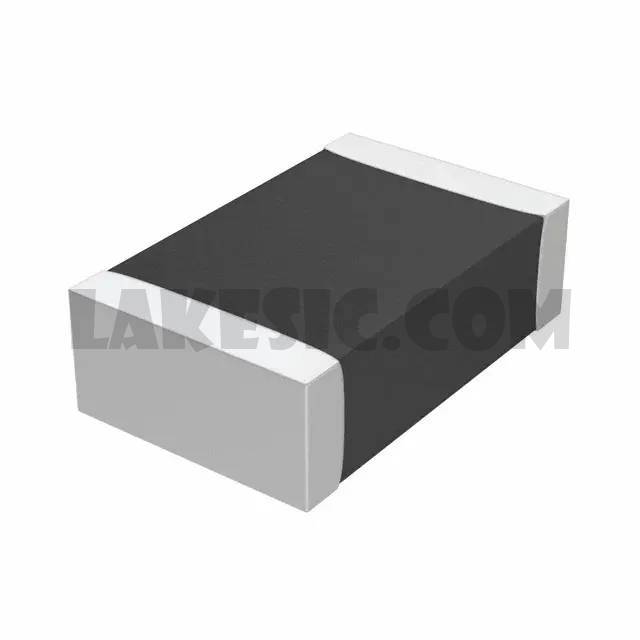

LQM21PNR24MEHD

Part NumberLQM21PNR24MEHD

ManufacturerMurata Electronics North America

DescriptionFIXED IND 240NH 2.4A 50 MOHM

DatasheetLQM21PNyyyyEHD Series Spec

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description240nH Shielded Multilayer Inductor 2.4A 50mOhm Max 0805 (2012 Metric)

To learn about the specification of LQM21PNR24MEHD, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM21PNR24MEHD with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM21PNR24MEHD.
We are offering LQM21PNR24MEHD for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM21PNR24MEHD - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM21PNyyyyEHD Series Spec
Standard Package	3000
Manufacturer	Murata Electronics North America
Series	LQM21
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	240nH
Tolerance	±20%
Current Rating (Amps)	2.4A
Current - Saturation	3.1A
Shielding	Shielded
DC Resistance (DCR)	50mOhm Max
Frequency - Self Resonant	130MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.057" (1.45mm)
