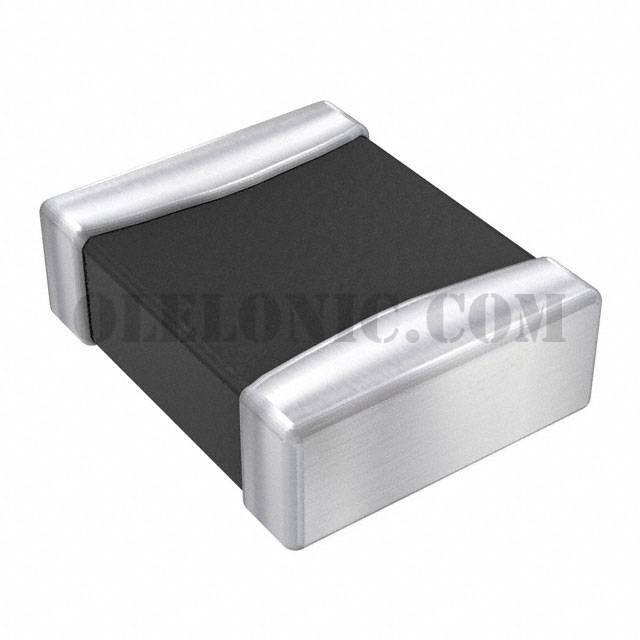

LQM2HPN2R2MEHL

Part NumberLQM2HPN2R2MEHL

ManufacturerMurata Electronics North America

DescriptionFIXED IND 2.2UH 1.3A 188 MOHM

DatasheetLQM2MPNyyyyEHL Ref Sheet

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Shielded Multilayer Inductor 1.3A 188mOhm Max 1008 (2520 Metric)

To learn about the specification of LQM2HPN2R2MEHL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQM2HPN2R2MEHL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQM2HPN2R2MEHL.
We are offering LQM2HPN2R2MEHL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQM2HPN2R2MEHL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQM2MPNyyyyEHL Ref Sheet
Standard Package	1
Manufacturer	Murata Electronics North America
Series	LQM2
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ferrite
Inductance	2.2µH
Tolerance	±20%
Current Rating (Amps)	1.3A
Current - Saturation	800mA
Shielding	Shielded
DC Resistance (DCR)	188mOhm Max
Q @ Freq	-
Frequency - Self Resonant	30MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.031" (0.80mm)
