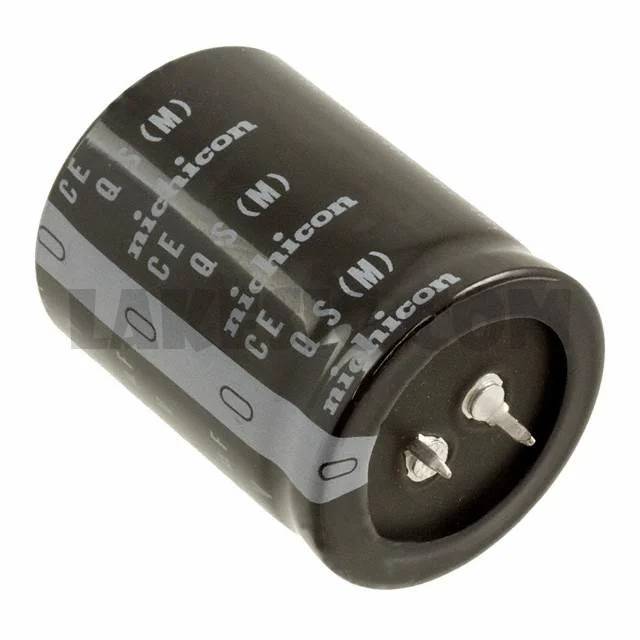

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	LQS Series
Standard Package	200
Manufacturer	Nichicon
Series	LQS
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.78A @ 120Hz
Ripple Current @ High Frequency	2.5454A @ 50kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.850" (47.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In

LQS2G121MELZ30	Nichicon, 120µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6151MELZ35	Nichicon, 150µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W181MELB30	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6181MELB25	Nichicon, 180µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6221MELB30	Nichicon, 220µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2W121MELZ35	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G221MELB25	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQSW6331MELC30	Nichicon, 330µF 420V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G471MELC35	Nichicon, 470µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G561MELB50	Nichicon, 560µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2V221MELA30	Nichicon, 220µF 350V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View
LQS2G151MELZ35	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C, LQS	View

LQS2W471MELC45

Part NumberLQS2W471MELC45
