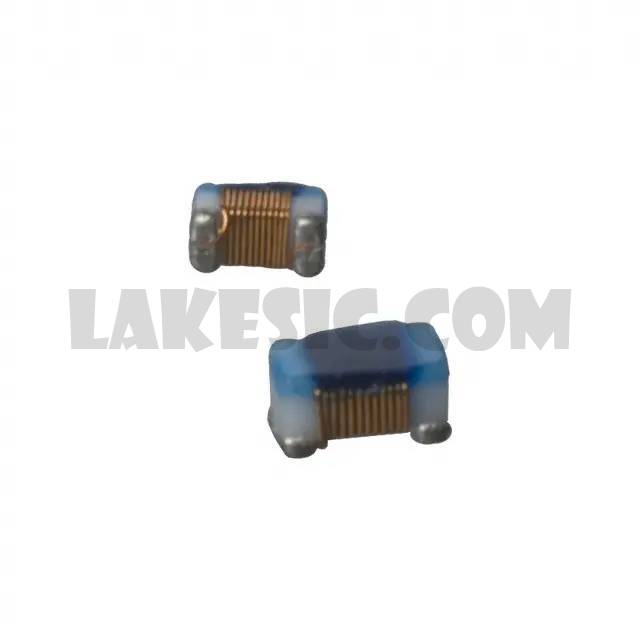

LQW15CA22NJ00D

Part NumberLQW15CA22NJ00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 22NH 1.3A 60 MOHM SMD

DatasheetLQW15CA Series Specification

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22nH Unshielded Wirewound Inductor 1.3A 60mOhm Max Nonstandard

To learn about the specification of LQW15CA22NJ00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW15CA22NJ00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW15CA22NJ00D.
We are offering LQW15CA22NJ00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW15CA22NJ00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW15CA Series Specification
Standard Package	10000
Manufacturer	Murata Electronics North America
Series	LQW15
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	22nH
Tolerance	±5%
Current Rating (Amps)	1.3A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	60mOhm Max
Q @ Freq	-
Frequency - Self Resonant	3GHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	10MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.040" L x 0.022" W (1.02mm x 0.55mm)
Height - Seated (Max)	0.026" (0.66mm)
