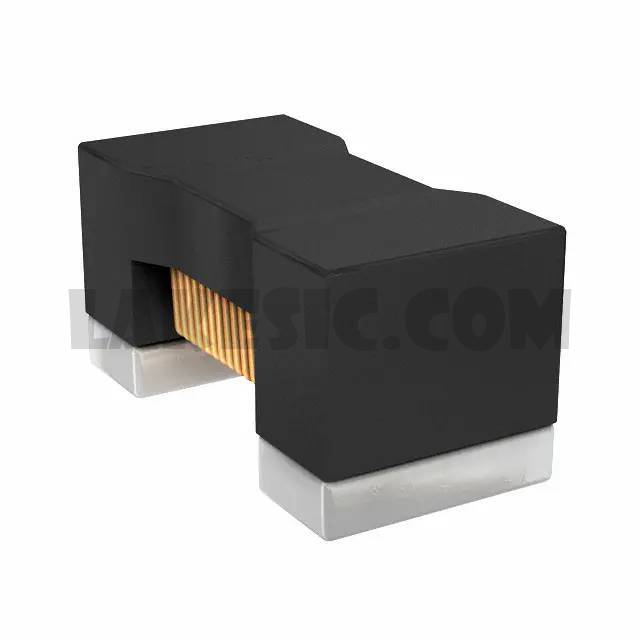

LQW18AN33NJ00D

Part NumberLQW18AN33NJ00D

ManufacturerMurata Electronics North America

DescriptionFIXED IND 33NH 420MA 230 MOHM

DatasheetLQW18ANyyyy00D Spec

Package / Case0603 (1608 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description33nH Unshielded Wirewound Inductor 420mA 230mOhm Max 0603 (1608 Metric)

To learn about the specification of LQW18AN33NJ00D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW18AN33NJ00D with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW18AN33NJ00D.
We are offering LQW18AN33NJ00D for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW18AN33NJ00D - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW18ANyyyy00D Spec
Standard Package	4000
Manufacturer	Murata Electronics North America
Series	LQW18
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	33nH
Tolerance	±5%
Current Rating (Amps)	420mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	230mOhm Max
Q @ Freq	40 @ 250MHz
Frequency - Self Resonant	3.2GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603 (1608 Metric)
Size / Dimension	0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max)	0.039" (1.00mm)
