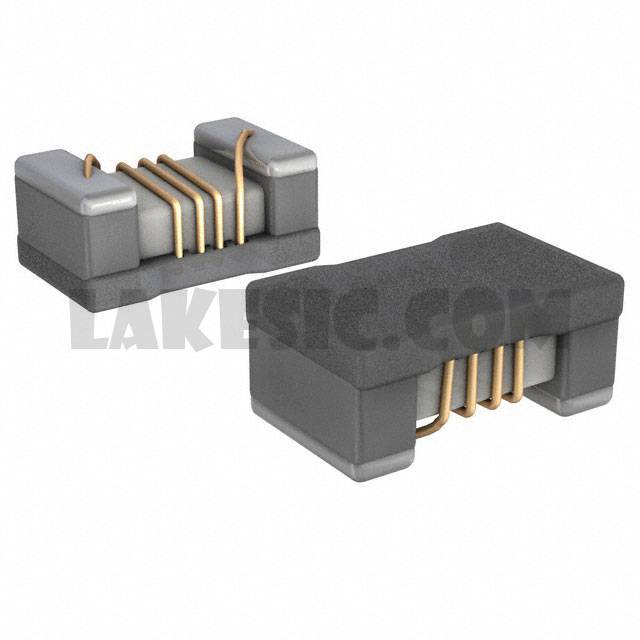

LQW21HNR56J00L

Part NumberLQW21HNR56J00L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 560NH 150MA 1.43 OHM

DatasheetChip Inductors Catalog

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560nH Unshielded Wirewound Inductor 150mA 1.43Ohm Max 0805 (2012 Metric)

To learn about the specification of LQW21HNR56J00L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW21HNR56J00L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW21HNR56J00L.
We are offering LQW21HNR56J00L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW21HNR56J00L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	Chip Inductors Catalog
Standard Package	3000
Manufacturer	Murata Electronics North America
Series	LQW21
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	560nH
Tolerance	±5%
Current Rating (Amps)	150mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.43Ohm Max
Q @ Freq	30 @ 100MHz
Frequency - Self Resonant	580MHz
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	10MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.079" L x 0.047" W (2.00mm x 1.20mm)
Height - Seated (Max)	0.039" (1.00mm)
