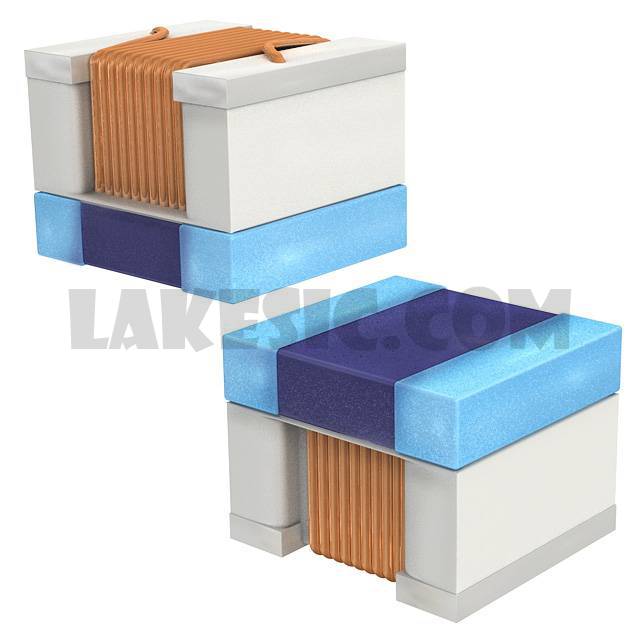

LQW2UAS22NF00L

Part NumberLQW2UAS22NF00L

ManufacturerMurata Electronics North America

DescriptionFIXED IND 22NH 1A 120 MOHM

DatasheetLQW2UASyyyy00L Ref Spec

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22nH Unshielded Wirewound Inductor 1A 120mOhm Max 1008 (2520 Metric)

To learn about the specification of LQW2UAS22NF00L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LQW2UAS22NF00L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of LQW2UAS22NF00L.
We are offering LQW2UAS22NF00L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

LQW2UAS22NF00L - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	LQW2UASyyyy00L Ref Spec
Standard Package	2000
Manufacturer	Murata Electronics North America
Series	LQW2
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Non-Magnetic
Inductance	22nH
Tolerance	±1%
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	120mOhm Max
Q @ Freq	55 @ 350MHz
Frequency - Self Resonant	2.4GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	50MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.103" L x 0.096" W (2.62mm x 2.45mm)
Height - Seated (Max)	0.080" (2.03mm)
