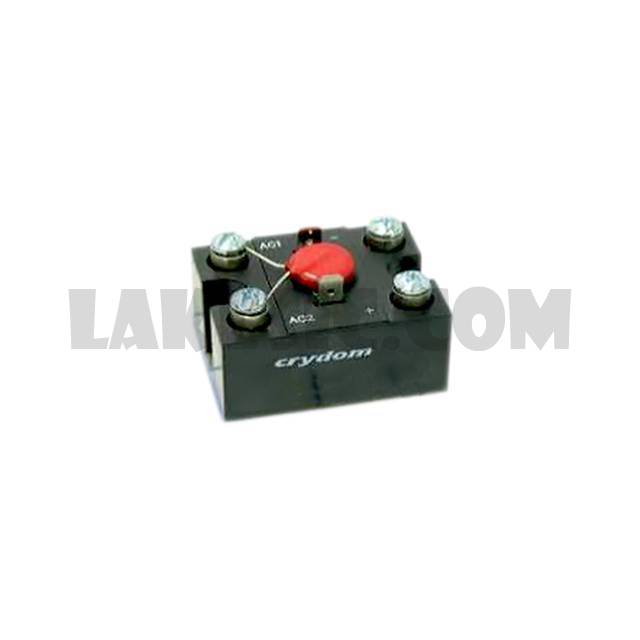

M5010015FV

Part NumberM5010015FV

ManufacturerSensata-Crydom

DescriptionMODULE POWER 100A 1200V SCR CC

DatasheetM50 Series

Package / CaseModule

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionSCR Module 1.2kV Bridge, Single Phase - SCRs/Diodes (Layout 1) Chassis Mount Module

To learn about the specification of M5010015FV, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add M5010015FV with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of M5010015FV.
We are offering M5010015FV for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

M5010015FV - Product Attributes

Categories

Discrete Semiconductor Products / Thyristors - SCRs - Modules

Datasheet

M50 Series

Standard Package

Manufacturer

Sensata-Crydom

Series

Packaging

Bulk

Part Status

Active

Structure

Bridge, Single Phase - SCRs/Diodes (Layout 1)

Number of SCRs, Diodes

2 SCRs, 2 Diodes

Voltage - Off State

1.2kV

Voltage - Gate Trigger (Vgt) (Max)

Current - Gate Trigger (Igt) (Max)

150mA

Current - Non Rep. Surge 50, 60Hz (Itsm)

1500A @ 60Hz

Operating Temperature

-40°C ~ 125°C (TJ)

Mounting Type

Chassis Mount

Package / Case

Module
