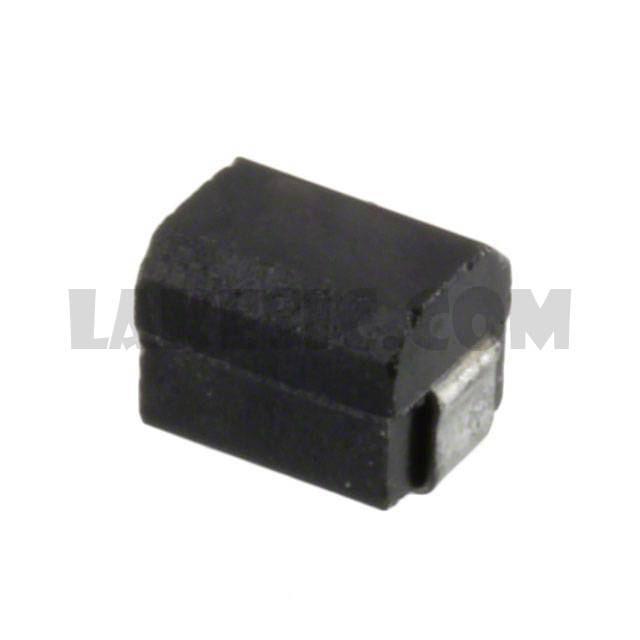

M83446/39-01F

M83446/39-01F

Part NumberM83446/39-01F

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 10NH 1.23A 100 MOHM

DatasheetMIL1812(R) (M83446/39)

Package / Case1812 (4532 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description10nH Unshielded Inductor 1.23A 100mOhm Max 1812 (4532 Metric)

To learn about the specification of M83446/39-01F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add M83446/39-01F with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of M83446/39-01F.
We are offering M83446/39-01F for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

M83446/39-01F - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MIL1812(R) (M83446/39)
Standard Package	1
Manufacturer	API Delevan Inc.
Series	Military, MIL-PRF-39010, M83446/39
Packaging	Cut Tape (CT)
Part Status	Active
Type	-
Material - Core	Phenolic
Inductance	10nH
Tolerance	±20%
Current Rating (Amps)	1.23A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Q @ Freq	40 @ 50MHz
Frequency - Self Resonant	1GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	50MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.134" (3.40mm)
