Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	MA4L & MADL Series
Standard Package	100
Manufacturer	M/A-Com Technology Solutions
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	35V
Current - Max	100mA
Capacitance @ Vr, F	0.2pF @ 0V, 1MHz
Resistance @ If, F	2.1Ohm @ 10mA, 500MHz
Operating Temperature	-55°C ~ 125°C (TJ)

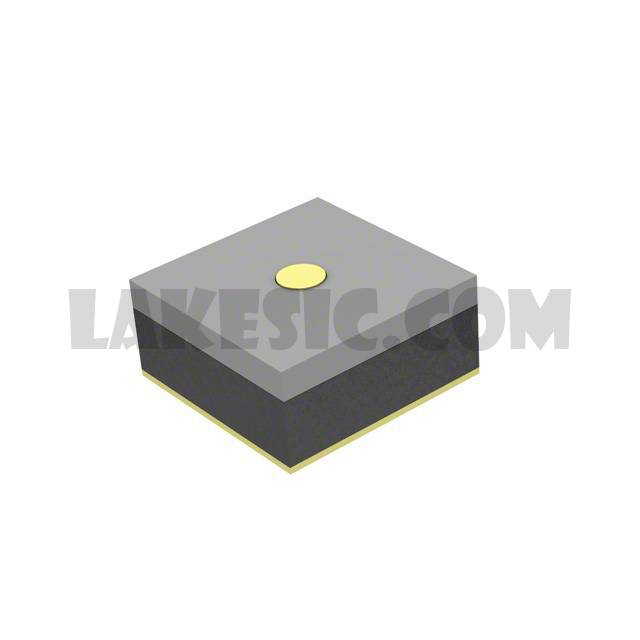

Package / Case	Die
Supplier Device Package	Chip

MA4PH236-1072T	M/A-Com Technology Solutions, RF Diode PIN - Single 600V 1W,	View
MA4P7102F-1072T	M/A-Com Technology Solutions, RF Diode PIN - Single 200V 11.5W,	View
SMP1304-085LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 1.5A 2.5W 3-QFN (2x2),	View
SKY16601-555LF	Skyworks Solutions Inc., RF Diode PIN - Single 45V 1.5A 1W 2-MLP (2.5x2.5),	View
MA4P7006F-1072T	M/A-Com Technology Solutions, RF Diode PIN - Single 600V 10W,	View
MA4P4002F-1091T	M/A-Com Technology Solutions, RF Diode PIN - Single 200V 7.5W SMD,	View
MADP-011029-14150T	M/A-Com Technology Solutions, RF Diode PIN - Single 400V 250mA 7.5W 6-TDFN (1.5x1.2),	View
MA4P1200NM-401T	M/A-Com Technology Solutions, RF Diode PIN - Single 100V 1.5W Axial,	View
SMPA1304-011LF	Skyworks Solutions Inc., RF Diode PIN - Single 200V 250mW SOD-323,	View
SMP1322-005LF	Skyworks Solutions Inc., RF Diode PIN - 1 Pair Series Connection 50V 250mW SOT-23-3,	View
SMP1371-087LF	Skyworks Solutions Inc., RF Diode PIN - Single 35V 200mA 2W 2-QFN (2x2),	View
CLA4607-085LF	Skyworks Solutions Inc., RF Diode PIN - Single 180V 1.5A 13W 3-QFN (2x2),	View

MA4L021-134

Part NumberMA4L021-134
