Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB10F
Standard Package	5000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	800mA
Voltage - Forward (Vf) (Max) @ If	1.1V @ 800mA
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	MBF

CDBHD240-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount Mini-Dip (TO-269AA),	View
DF10SA-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
SDB207-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDB-1,	View
DF005S-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 50V Surface Mount DFS,	View
DF08S	ON Semiconductor, Bridge Rectifier Single Phase Standard 800V Surface Mount 4-SDIP,	View
B05S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V Surface Mount MBS,	View
DF210ST-G	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
DBLS203G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 200V Surface Mount DBLS,	View
DF04S	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
SDB155-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount SDB-1,	View
KMB25STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 50V Surface Mount MBS,	View
DBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View

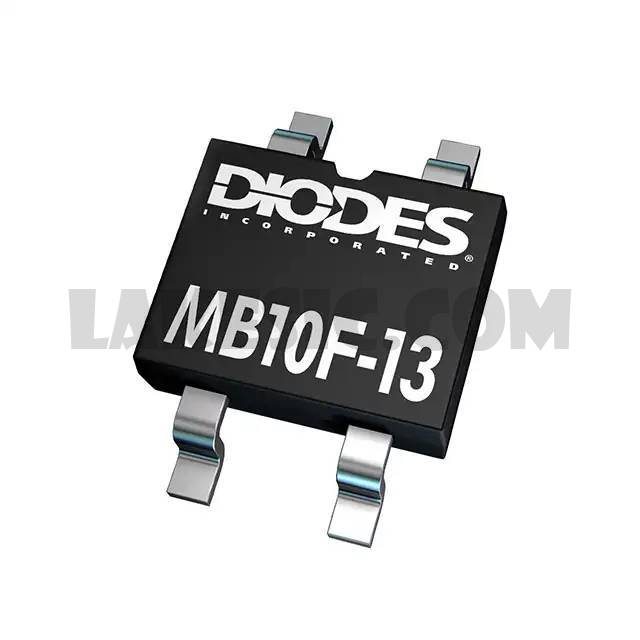

MB10F-13

Part NumberMB10F-13
