Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MB2S, MB4S & MB6S
Standard Package	3000
Manufacturer	Vishay Semiconductor Diodes Division
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	200V
Current - Average Rectified (Io)	500mA
Voltage - Forward (Vf) (Max) @ If	1V @ 400mA
Current - Reverse Leakage @ Vr	5µA @ 200V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

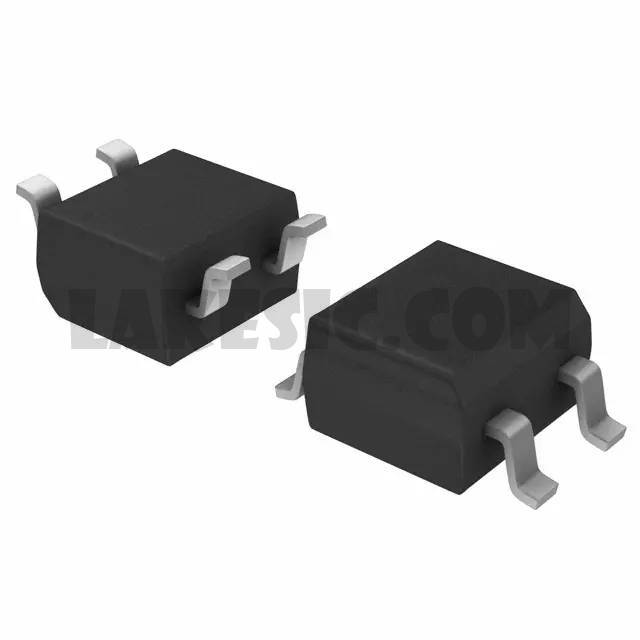

Package / Case	TO-269AA, 4-BESOP
Supplier Device Package	TO-269AA (MBS)
Base Part Number	MB2

CDBHM1100L-HF	Comchip Technology, Bridge Rectifier Single Phase Schottky 100V Surface Mount MBS,	View
B05S-G	Comchip Technology, Bridge Rectifier Single Phase Standard 50V Surface Mount MBS,	View
Z4GP208-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 800V Surface Mount ABS(Z4),	View
MSB10M-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount 4-MSB,	View
DF01S	ON Semiconductor, Bridge Rectifier Single Phase Standard 100V Surface Mount 4-SDIP,	View
DBLS209G RDG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1.4kV Surface Mount DBLS,	View
DF10SA-E3/45	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
SBS25 REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 50V Surface Mount ABS,	View
DF1510S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View
LMB10S-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount LMBS-1,	View
RABS15M REG	Taiwan Semiconductor Corporation, Bridge Rectifier Single Phase Standard 1kV Surface Mount ABS-L,	View
DF10S-E3/77	Vishay Semiconductor Diodes Division, Bridge Rectifier Single Phase Standard 1kV Surface Mount DFS,	View

MB2S-E3/80

Part NumberMB2S-E3/80
