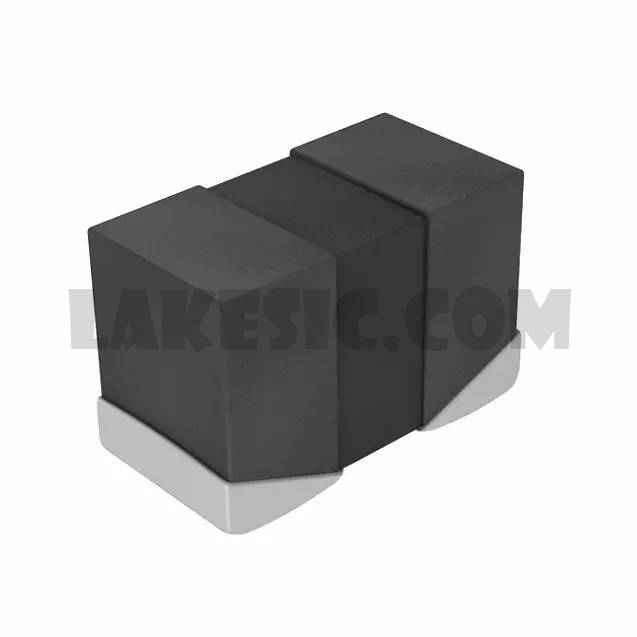

MBMK2520TR68N

Part NumberMBMK2520TR68N

ManufacturerTaiyo Yuden

DescriptionFIXED IND 680NH 2.15A 58 MOHM

DatasheetMBMK2520TR68N View all Specification

Package / Case1008 (2520 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description680nH Shielded Wirewound Inductor 2.15A 58mOhm Max 1008 (2520 Metric)

To learn about the specification of MBMK2520TR68N, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBMK2520TR68N with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBMK2520TR68N.
We are offering MBMK2520TR68N for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBMK2520TR68N - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

MBMK2520TR68N View all Specification

Standard Package

3000

Manufacturer

Taiyo Yuden

Series

MCOIL™, MB

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Metal

Inductance

680nH

Tolerance

±30%

Current Rating (Amps)

2.15A

Current - Saturation

3.15A

Shielding

Shielded

DC Resistance (DCR)

58mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

1MHz

Mounting Type

Surface Mount

Package / Case

1008 (2520 Metric)

Supplier Device Package

1008 (2520 Metric)

Size / Dimension

0.098" L x 0.079" W (2.50mm x 2.00mm)

Height - Seated (Max)

0.047" (1.20mm)
