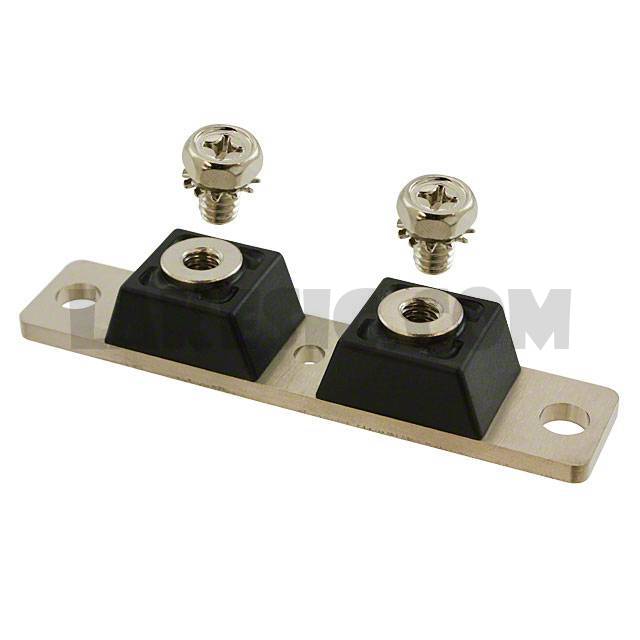

MBR12045CTR

Part NumberMBR12045CTR

ManufacturerGeneSiC Semiconductor

DescriptionDIODE MODULE 45V 120A 2TOWER

DatasheetMBR12045CT thru MBR120100CTR

Package / CaseTwin Tower

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Anode Schottky, Reverse Polarity 45V 120A (DC) Chassis Mount Twin Tower

To learn about the specification of MBR12045CTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBR12045CTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBR12045CTR.
We are offering MBR12045CTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBR12045CTR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	MBR12045CT thru MBR120100CTR
Standard Package	25
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Common Anode
Diode Type	Schottky, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io) (per Diode)	120A (DC)
Voltage - Forward (Vf) (Max) @ If	650mV @ 60A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	3mA @ 20V
Operating Temperature - Junction	-55°C ~ 150°C
Mounting Type	Chassis Mount
Package / Case	Twin Tower
Supplier Device Package	Twin Tower
