MBR3560R

MBR3560R

Part NumberMBR3560R

ManufacturerGeneSiC Semiconductor

DescriptionDIODE SCHOTTKY REV 60V DO4

DatasheetMBR3545 thru MBR35100R

Package / CaseDO-203AA, DO-4, Stud

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

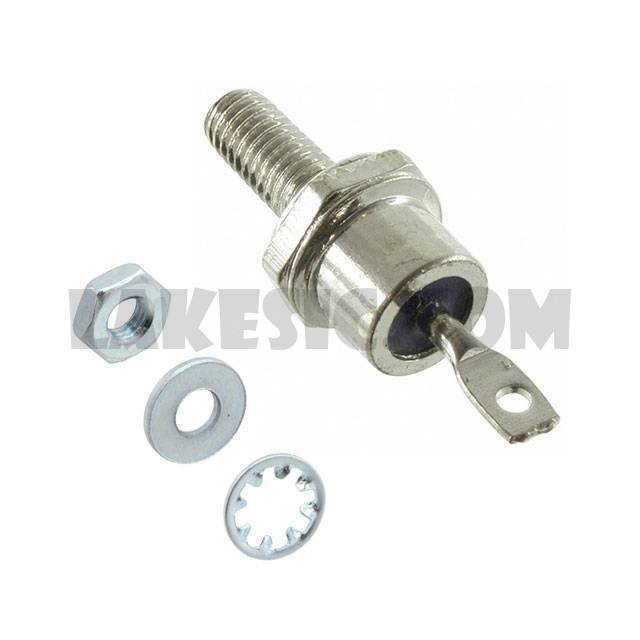

Detailed DescriptionDiode Schottky, Reverse Polarity 60V 35A Chassis, Stud Mount DO-4

To learn about the specification of MBR3560R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBR3560R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBR3560R.
We are offering MBR3560R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBR3560R - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MBR3545 thru MBR35100R
Standard Package	250
Manufacturer	GeneSiC Semiconductor
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Schottky, Reverse Polarity
Voltage - DC Reverse (Vr) (Max)	60V
Current - Average Rectified (Io)	35A
Voltage - Forward (Vf) (Max) @ If	750mV @ 35A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	1.5mA @ 20V
Capacitance @ Vr, F	-
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud
Supplier Device Package	DO-4
Operating Temperature - Junction	-55°C ~ 150°C
