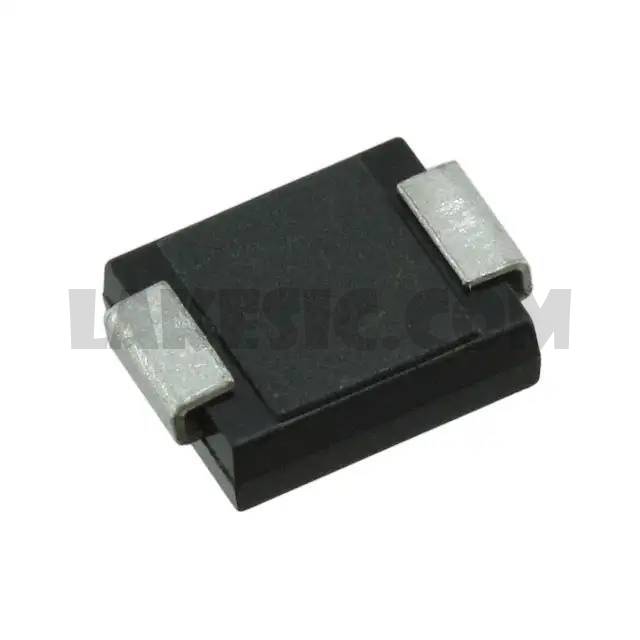

MBRS320

MBRS320

Part NumberMBRS320

ManufacturerON Semiconductor

DescriptionDIODE SCHOTTKY 20V 4A SMC

DatasheetMBRS320

Package / CaseDO-214AB, SMC

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 20V 4A Surface Mount SMC (DO-214AB)

To learn about the specification of MBRS320, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MBRS320 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MBRS320.
We are offering MBRS320 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MBRS320 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MBRS320
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	20V
Current - Average Rectified (Io)	4A
Voltage - Forward (Vf) (Max) @ If	500mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	2mA @ 20V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	DO-214AB, SMC
Supplier Device Package	SMC (DO-214AB)
Operating Temperature - Junction	-65°C ~ 125°C
Base Part Number	MBRS320
