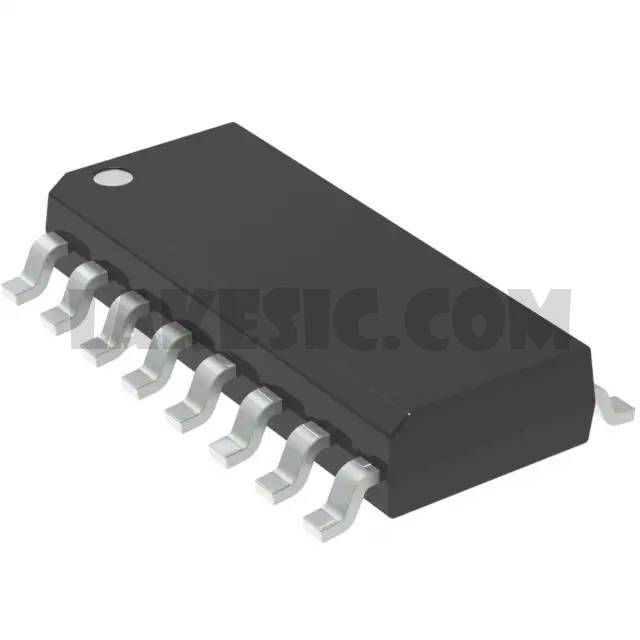

MC1413BDR2G

MC1413BDR2G

Part NumberMC1413BDR2G

ManufacturerON Semiconductor

DescriptionTRANS 7NPN DARL 50V 0.5A 16SO

DatasheetMC1413(B), NCV1413B

Package / Case16-SOIC (0.154", 3.90mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-SOIC

To learn about the specification of MC1413BDR2G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MC1413BDR2G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MC1413BDR2G.
We are offering MC1413BDR2G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MC1413BDR2G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	MC1413(B), NCV1413B
Standard Package	2500
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 350mA, 2V
Power - Max	-
Frequency - Transition	-
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	16-SOIC
Base Part Number	MC1413B
