MCAC80N06Y-TP

MCAC80N06Y-TP

Part NumberMCAC80N06Y-TP

ManufacturerMicro Commercial Co

DescriptionN-CHANNEL,MOSFETS,DFN5060 PACKAG

DatasheetMCAC80N06Y

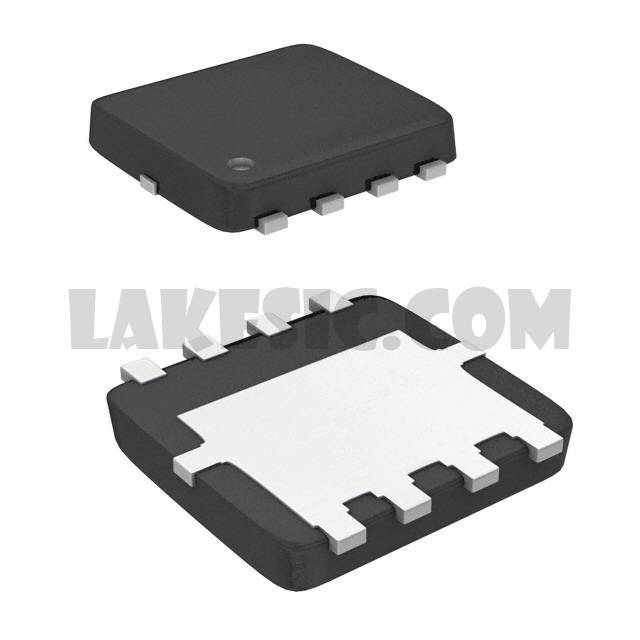

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 80A (Tc) 85W (Tc) Surface Mount DFN5060

To learn about the specification of MCAC80N06Y-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCAC80N06Y-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCAC80N06Y-TP.
We are offering MCAC80N06Y-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCAC80N06Y-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MCAC80N06Y
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	4.2mOhm @ 40A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	67nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	3980pF @ 30V
FET Feature	-
Power Dissipation (Max)	85W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN5060
Package / Case	8-PowerVDFN
