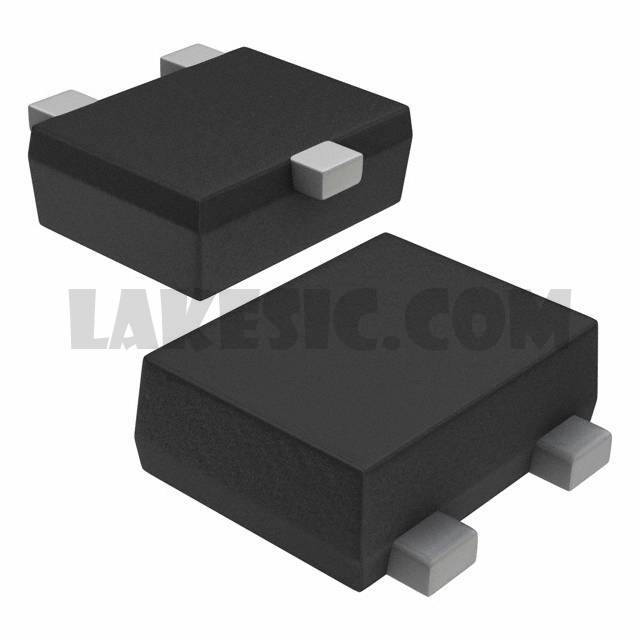

MCH3109-TL-E

MCH3109-TL-E

Part NumberMCH3109-TL-E

ManufacturerON Semiconductor

DescriptionTRANS PNP 30V 3A MCPH3

DatasheetMCH3109,3209

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 30V 3A 380MHz 800mW Surface Mount 3-MCPH

To learn about the specification of MCH3109-TL-E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH3109-TL-E with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH3109-TL-E.
We are offering MCH3109-TL-E for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH3109-TL-E - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MCH3109,3209
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	30V
Vce Saturation (Max) @ Ib, Ic	155mV @ 75mA, 1.5A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 500mA, 2V
Power - Max	800mW
Frequency - Transition	380MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	3-MCPH
