MCM1206-TP

MCM1206-TP

Part NumberMCM1206-TP

ManufacturerMicro Commercial Co

DescriptionMOSFET P-CH 12V 6A DFN202

DatasheetMCM1206

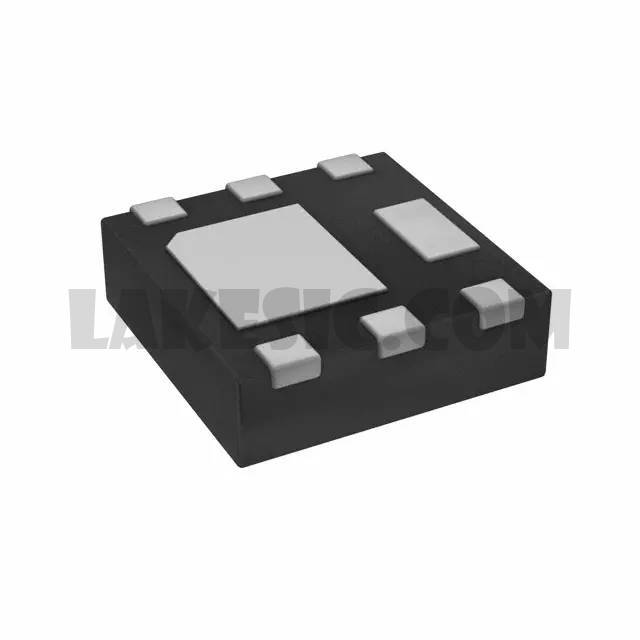

Package / Case6-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 6A (Ta) Surface Mount DFN2020-6J

To learn about the specification of MCM1206-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCM1206-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCM1206-TP.
We are offering MCM1206-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCM1206-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MCM1206
Standard Package	3000
Manufacturer	Micro Commercial Co
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	6A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	45mOhm @ 3.5A, 4.5V
Vgs(th) (Max) @ Id	0.9V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	7.8nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	740pF @ 4V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DFN2020-6J
Package / Case	6-WDFN Exposed Pad
