Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MDB6S_8S_10S
Standard Package	4000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	600V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Current - Reverse Leakage @ Vr	10µA @ 600V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	4-SMD, Gull Wing
Supplier Device Package	4-MicroDIP/SMD
Base Part Number	MDB6

CBRLDSH2-40 TR13	Central Semiconductor Corp, Bridge Rectifier Single Phase Schottky 40V Surface Mount 4-LPDIP,	View
DF06S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Surface Mount DF-S,	View
NSR1030QMUTWG	ON Semiconductor, Bridge Rectifier Single Phase Schottky 30V Surface Mount 4-UDFN (3x3),	View
KMB245STR	SMC Diode Solutions, Bridge Rectifier Single Phase Schottky 45V Surface Mount MBS,	View
SDB157L-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 1kV Surface Mount SDBL-1,	View
BAS4002ARPPE6327HTSA1	Infineon Technologies, Bridge Rectifier Single Phase Standard 40V Surface Mount PG-SOT143-4,	View
DF06S-T	Diodes Incorporated, Bridge Rectifier Single Phase Standard 600V Surface Mount DF-S,	View
DF04S2	ON Semiconductor, Bridge Rectifier Single Phase Standard 400V Surface Mount 4-SDIP,	View
DBF2510-13	Diodes Incorporated, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBF,	View
CDBHD240-G	Comchip Technology, Bridge Rectifier Single Phase Schottky 40V Surface Mount Mini-Dip (TO-269AA),	View
DB107S-HF	Comchip Technology, Bridge Rectifier Single Phase Standard 1kV Surface Mount DBS,	View
TBS22J-TP	Micro Commercial Co, Bridge Rectifier Single Phase Standard 600V Surface Mount 4-TBS,	View

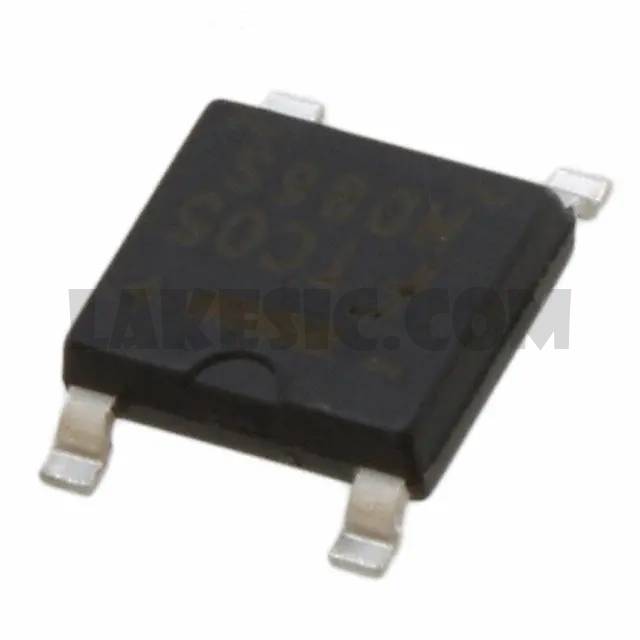

MDB6S
