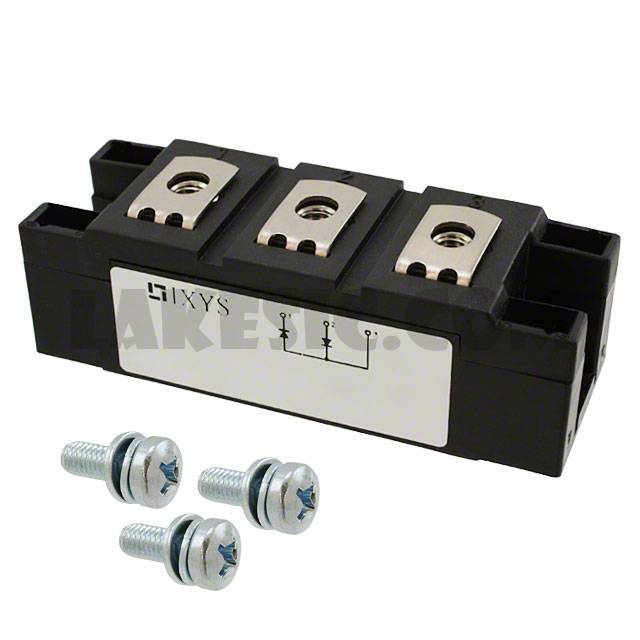

MDD142-16N1

Part NumberMDD142-16N1

ManufacturerIXYS

DescriptionDIODE MODULE 1.6KV 165A Y4-M6

DatasheetMDD142-16N1

Package / CaseY4-M6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 1600V 165A Chassis Mount Y4-M6

To learn about the specification of MDD142-16N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MDD142-16N1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MDD142-16N1.
We are offering MDD142-16N1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MDD142-16N1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	MDD142-16N1
Standard Package	6
Manufacturer	IXYS
Series	-
Packaging	Bulk
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	1600V
Current - Average Rectified (Io) (per Diode)	165A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 300A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	20mA @ 1600V
Mounting Type	Chassis Mount
Package / Case	Y4-M6
Supplier Device Package	Y4-M6
Base Part Number	MDD142
