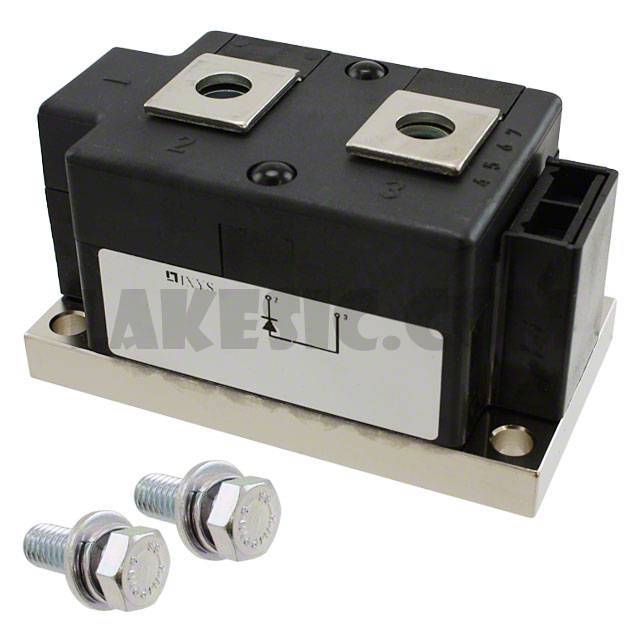

MDO500-22N1

MDO500-22N1

Part NumberMDO500-22N1

ManufacturerIXYS

DescriptionDIODE GEN PURP 2.2KV 560A Y1-CU

DatasheetMDO500

Package / CaseY1-CU

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 2200V 560A Chassis Mount Y1-CU

To learn about the specification of MDO500-22N1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MDO500-22N1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MDO500-22N1.
We are offering MDO500-22N1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MDO500-22N1 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MDO500
Standard Package	3
Manufacturer	IXYS
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	2200V
Current - Average Rectified (Io)	560A
Voltage - Forward (Vf) (Max) @ If	1.3V @ 1200A
Speed	Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	30mA @ 2200V
Capacitance @ Vr, F	576pF @ 700V, 1MHz
Mounting Type	Chassis Mount
Package / Case	Y1-CU
Supplier Device Package	Y1-CU
Base Part Number	MD*500
