Categories	Inductors, Coils, Chokes / Fixed Inductors

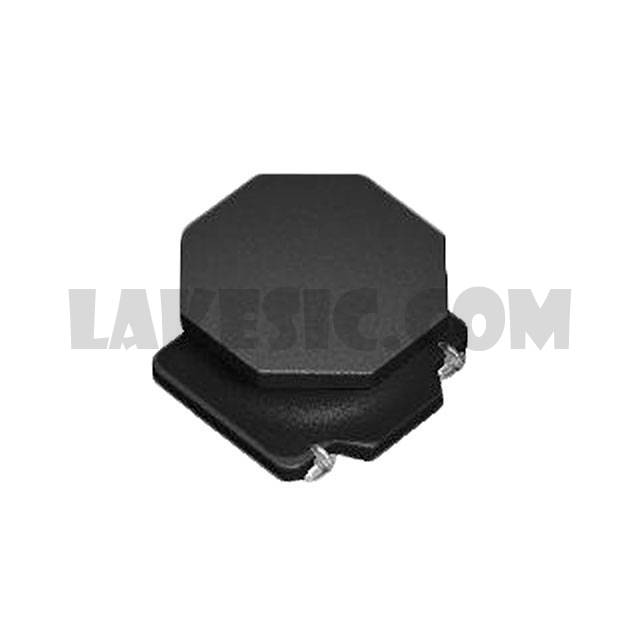

Datasheet	MDPK5050T1R0MM View all Specification
Standard Package	1000
Manufacturer	Taiyo Yuden
Series	MCOIL™, MD
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Metal
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	4.3A
Current - Saturation	8.5A
Shielding	Shielded
DC Resistance (DCR)	40mOhm Max
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	1MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	0.193" L x 0.193" W (4.90mm x 4.90mm)
Height - Seated (Max)	0.055" (1.40mm)
