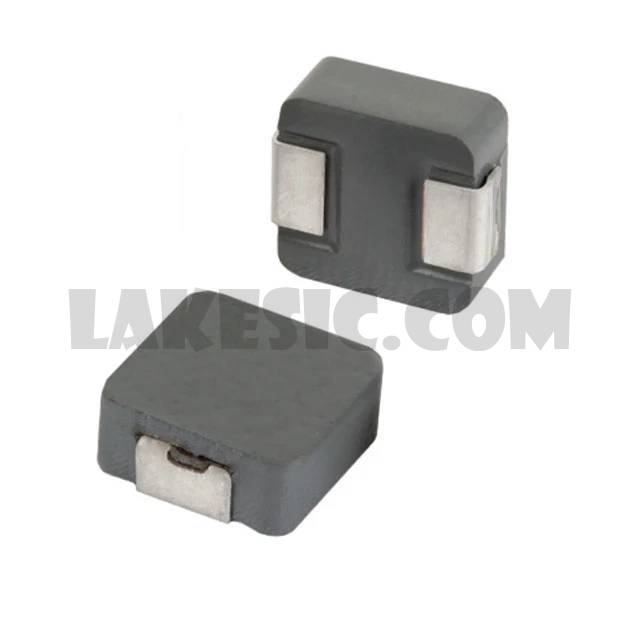

MGV0603R82M-10
MGV0603R82M-10
Part Number MGV0603R82M-10
Description FIXED IND 820NH 13A 8 MOHM SMD
Package / Case Nonstandard
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 820nH Shielded Molded Inductor 13A 8mOhm Max Nonstandard
To learn about the specification of MGV0603R82M-10, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MGV0603R82M-10 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MGV0603R82M-10.
We are offering MGV0603R82M-10 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
MGV0603R82M-10 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet MGV0603R82M-10 Drawing
Standard Package 1000
Manufacturer Laird-Signal Integrity Products
Series MGV
Packaging Tape & Reel (TR)
Part Status Active
Type Molded
Material - Core -
Inductance 820nH
Tolerance ±20%
Current Rating (Amps) 13A
Current - Saturation 24A
Shielding Shielded
DC Resistance (DCR) 8mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings -
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.287" L x 0.264" W (7.30mm x 6.70mm)
Height - Seated (Max) 0.130" (3.30mm)
