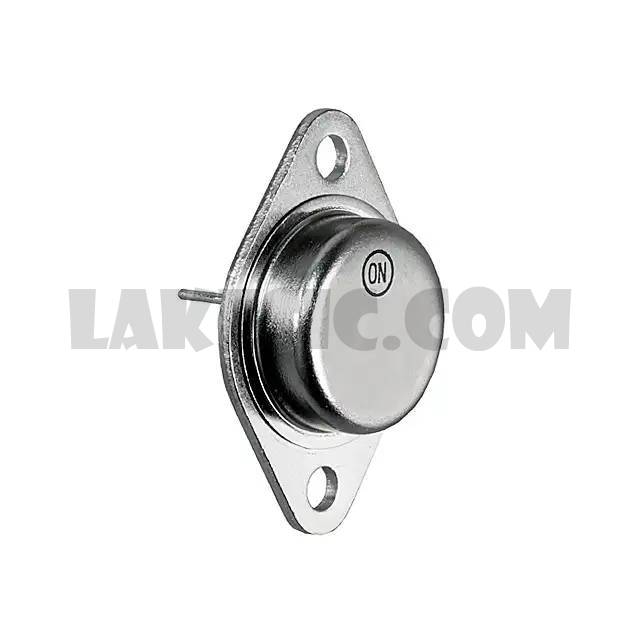

MJ11015G

MJ11015G

Part NumberMJ11015G

ManufacturerON Semiconductor

DescriptionTRANS PNP DARL 120V 30A TO3

DatasheetMJ11012,15,16

Package / CaseTO-204AA, TO-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP - Darlington 120V 30A 4MHz 200W Through Hole TO-204 (TO-3)

To learn about the specification of MJ11015G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MJ11015G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MJ11015G.
We are offering MJ11015G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MJ11015G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MJ11012,15,16
Standard Package	100
Manufacturer	ON Semiconductor
Series	-
Packaging	Tray
Part Status	Active
Transistor Type	PNP - Darlington
Current - Collector (Ic) (Max)	30A
Voltage - Collector Emitter Breakdown (Max)	120V
Vce Saturation (Max) @ Ib, Ic	4V @ 300mA, 30A
Current - Collector Cutoff (Max)	1mA
DC Current Gain (hFE) (Min) @ Ic, Vce	1000 @ 20A, 5V
Power - Max	200W
Frequency - Transition	4MHz
Operating Temperature	-55°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-204AA, TO-3
Supplier Device Package	TO-204 (TO-3)
