MJF3055G

MJF3055G

Part NumberMJF3055G

ManufacturerON Semiconductor

DescriptionTRANS NPN 90V 10A TO220FP

DatasheetMJF3055,2955

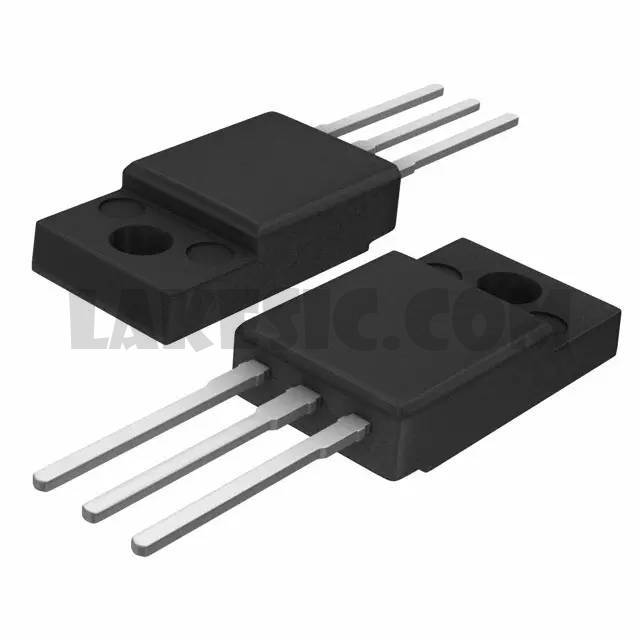

Package / CaseTO-220-3 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 90V 10A 2MHz 2W Through Hole TO-220FP

To learn about the specification of MJF3055G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MJF3055G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MJF3055G.
We are offering MJF3055G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MJF3055G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MJF3055,2955
Standard Package	50
Manufacturer	ON Semiconductor
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	10A
Voltage - Collector Emitter Breakdown (Max)	90V
Vce Saturation (Max) @ Ib, Ic	2.5V @ 3.3A, 10A
Current - Collector Cutoff (Max)	1µA
DC Current Gain (hFE) (Min) @ Ic, Vce	20 @ 4A, 4V
Power - Max	2W
Frequency - Transition	2MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-220-3 Full Pack
Supplier Device Package	TO-220FP
