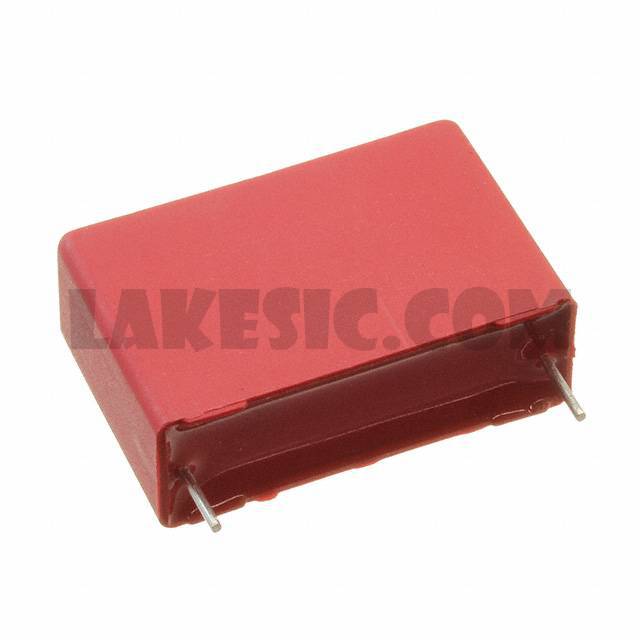

Categories	Capacitors / Film Capacitors
Datasheet	WIMA MKP 10
Standard Package	459
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	0.15µF
Tolerance	±10%
Voltage Rating - AC	600V
Voltage Rating - DC	1000V (1kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.240" L x 0.433" W (31.50mm x 11.00mm)
Height - Seated (Max)	0.827" (21.00mm)
Termination	PC Pins
Lead Spacing	1.083" (27.50mm)
Applications	High Pulse, DV/DT
Ratings	-
Features	-

MKP1U022205D00KSSD	WIMA, 0.022µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1G032204J00JSSD	WIMA, 0.22µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial,	View
MKP1U024706B00MSSD	WIMA, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1T031506D00KSSD	WIMA, 0.15µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial,	View
MKP1D031003G00JSSD	WIMA, 0.1µF Film Capacitor 63V 100V Polypropylene (PP), Metallized Radial,	View
MKP1U024706B00JSSD	WIMA, 0.047µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1V021005F00KSSD	WIMA, 10000pF Film Capacitor 700V 2500V (2.5kV) Polypropylene (PP), Metallized Radial,	View
MKP1J024705B00JSC9	WIMA, 0.047µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View
MKP1U014705B00JSSD	WIMA, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial,	View
MKP1O112203C00JSSD	WIMA, 2200pF Film Capacitor 600V 1000V (1kV) Polypropylene (PP), Metallized Radial,	View
MKP1V022205I00MSSD	WIMA, 0.022µF Film Capacitor 700V 2500V (2.5kV) Polypropylene (PP), Metallized Radial,	View
MKP1J031505F00JSSD	WIMA, 0.15µF Film Capacitor 400V 630V Polypropylene (PP), Metallized Radial,	View

MKP1O131506B00KSSD

Part NumberMKP1O131506B00KSSD
