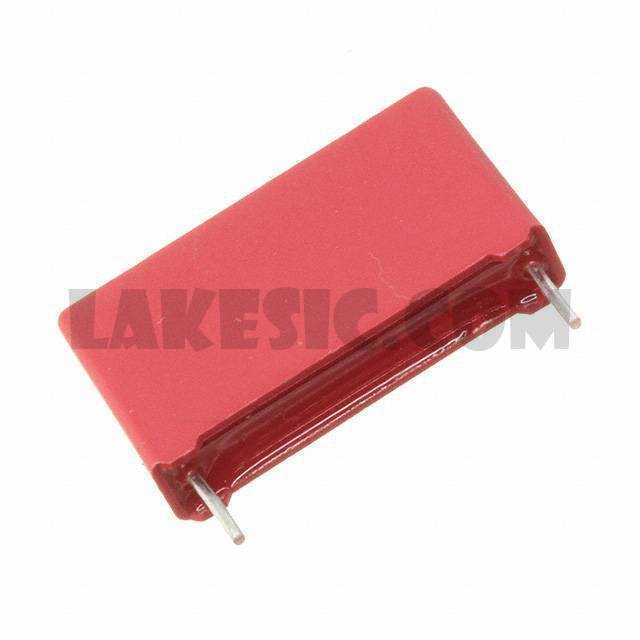

Categories	Capacitors / Film Capacitors
Datasheet	WIMA MKP 10
Standard Package	1000
Manufacturer	WIMA
Series	-
Packaging	Bulk
Part Status	Active
Capacitance	10000pF
Tolerance	±5%
Voltage Rating - AC	700V
Voltage Rating - DC	2000V (2kV)
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 100°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.236" W (26.50mm x 6.00mm)
Height - Seated (Max)	0.591" (15.00mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	High Pulse, DV/DT
Ratings	-
Features	-
