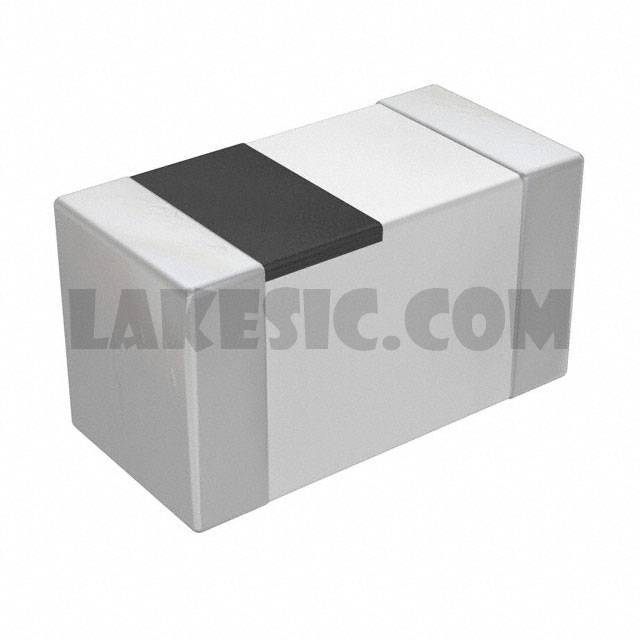

MLG0603PPA2N7CT000

Part NumberMLG0603PPA2N7CT000

To learn about the specification of MLG0603PPA2N7CT000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MLG0603PPA2N7CT000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MLG0603PPA2N7CT000.
We are offering MLG0603PPA2N7CT000 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MLG0603PPA Series, Commercial Datasheet
Standard Package	1
Manufacturer	TDK Corporation
Series	MLG-PPA
Packaging	Cut Tape (CT)
Part Status	Active
Type	Multilayer
Material - Core	Ceramic
Inductance	2.7nH
Tolerance	±0.2nH
Current Rating (Amps)	1.3A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	65mOhm Max
Q @ Freq	10 @ 500MHz
Frequency - Self Resonant	5.5GHz
Ratings	AEC-Q200
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	500MHz
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201 (0603 Metric)
Size / Dimension	0.024" L x 0.012" W (0.60mm x 0.30mm)
Height - Seated (Max)	0.013" (0.33mm)
