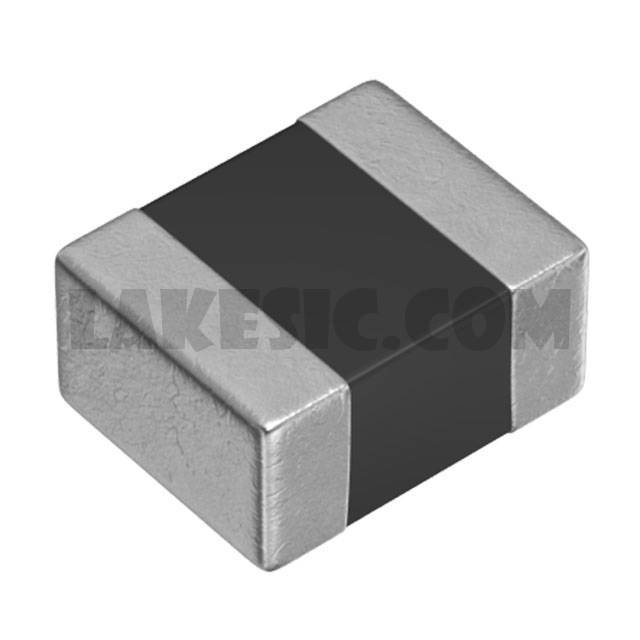

MLP2520H1R0ST0S1

Part NumberMLP2520H1R0ST0S1

To learn about the specification of MLP2520H1R0ST0S1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MLP2520H1R0ST0S1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MLP2520H1R0ST0S1.
We are offering MLP2520H1R0ST0S1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	MLP2520 Series, Commercial Datasheet
Standard Package	3000
Manufacturer	TDK Corporation
Series	MLP
Packaging	Tape & Reel (TR)
Part Status	Not For New Designs
Type	Multilayer
Material - Core	Ferrite
Inductance	1µH
Tolerance	±20%
Current Rating (Amps)	1.6A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	70mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	2MHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
