Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	MM5ZyyyT1G, SZMM5ZyyyT1G Series
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	5.6V
Tolerance	±7.1%
Power - Max	500mW
Impedance (Max) (Zzt)	40 Ohms
Current - Reverse Leakage @ Vr	1µA @ 2V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-65°C ~ 150°C
Mounting Type	Surface Mount

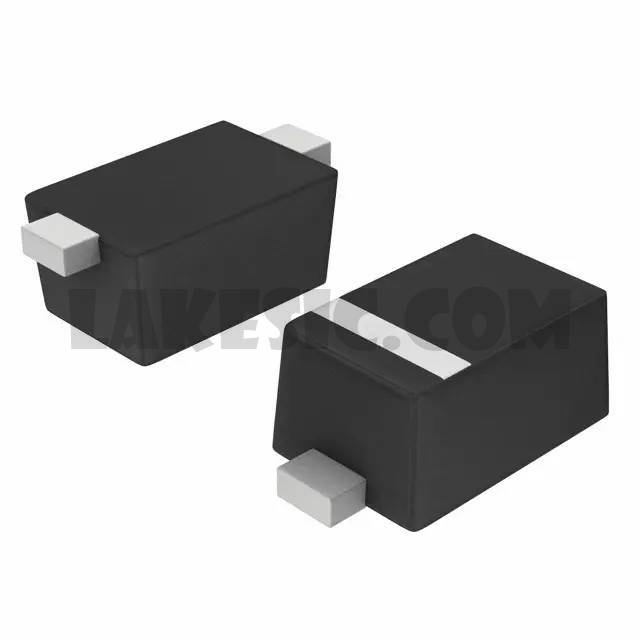

Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Base Part Number	MM5Z5V6
