MMBD4148PLM-7

Part NumberMMBD4148PLM-7

ManufacturerDiodes Incorporated

DescriptionDIODE ARRAY GP 75V 200MA 6DFN

DatasheetMMBD4148PLM

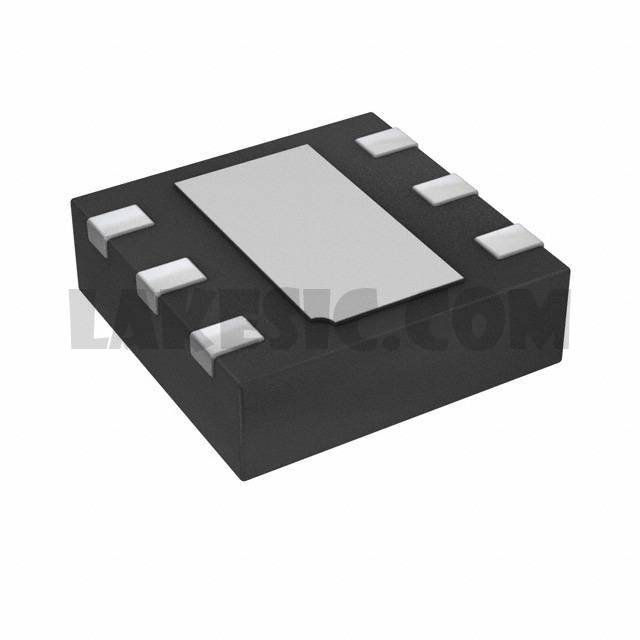

Package / Case6-UFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 5 Common Cathode Standard 75V 200mA Surface Mount 6-UFDFN Exposed Pad

To learn about the specification of MMBD4148PLM-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMBD4148PLM-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMBD4148PLM-7.
We are offering MMBD4148PLM-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMBD4148PLM-7 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	MMBD4148PLM
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	5 Common Cathode
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io) (per Diode)	200mA
Voltage - Forward (Vf) (Max) @ If	1.25V @ 150mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	1µA @ 75V
Operating Temperature - Junction	-65°C ~ 150°C
Mounting Type	Surface Mount
Package / Case	6-UFDFN Exposed Pad
Supplier Device Package	6-DFN1616 (1.6x1.6)
Base Part Number	MMBD4148PLM
