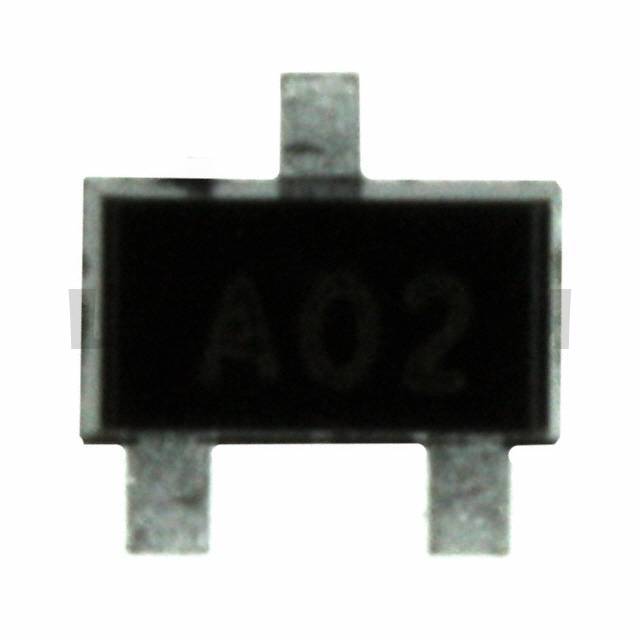

MMBT2222AT

MMBT2222AT

Part NumberMMBT2222AT

ManufacturerON Semiconductor

DescriptionTRANS NPN 40V 0.6A SOT523F

DatasheetMMBT2222AT Datasheet

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 40V 600mA 300MHz 250mW Surface Mount SOT-523F

To learn about the specification of MMBT2222AT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMBT2222AT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMBT2222AT.
We are offering MMBT2222AT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMBT2222AT - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	MMBT2222AT Datasheet
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	600mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	-
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 1V
Power - Max	250mW
Frequency - Transition	300MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-89, SOT-490
Supplier Device Package	SOT-523F
Base Part Number	MMBT2222
