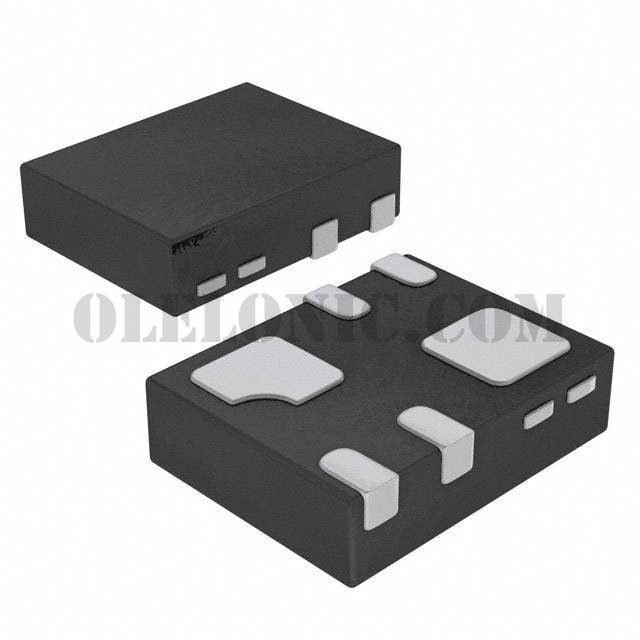

MMDT3946LP4-7

Part NumberMMDT3946LP4-7

ManufacturerDiodes Incorporated

DescriptionTRANS NPN/PNP 40V 0.2A 6DFN

DatasheetMMDT3946LP4

Package / Case6-SMD, No Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 40V 200mA 300MHz, 250MHz 200mW Surface Mount DFN1310H4-6

To learn about the specification of MMDT3946LP4-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMDT3946LP4-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMDT3946LP4-7.
We are offering MMDT3946LP4-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMDT3946LP4-7 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays

Datasheet

MMDT3946LP4

Standard Package

3000

Manufacturer

Diodes Incorporated

Series

Packaging

Tape & Reel (TR)

Part Status

Active

Transistor Type

NPN, PNP

Current - Collector (Ic) (Max)

200mA

Voltage - Collector Emitter Breakdown (Max)

40V

Vce Saturation (Max) @ Ib, Ic

300mV @ 5mA, 50mA / 400mV @ 5mA, 50mA

Current - Collector Cutoff (Max)

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 10mA, 1V

Power - Max

200mW

Frequency - Transition

300MHz, 250MHz

Operating Temperature

Mounting Type

Surface Mount

Package / Case

6-SMD, No Lead

Supplier Device Package

DFN1310H4-6

Base Part Number

MMDT3946
