Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	MMIX1X200N60B3H1
Standard Package	20
Manufacturer	IXYS
Series	GenX3™, XPT™
Packaging	Tube
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	175A
Current - Collector Pulsed (Icm)	1000A
Vce(on) (Max) @ Vge, Ic	1.7V @ 15V, 100A
Power - Max	520W
Switching Energy	2.85mJ (on), 2.9mJ (off)
Input Type	Standard
Gate Charge	315nC
Td (on/off) @ 25°C	48ns/160ns
Test Condition	360V, 100A, 1Ohm, 15V
Reverse Recovery Time (trr)	100ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

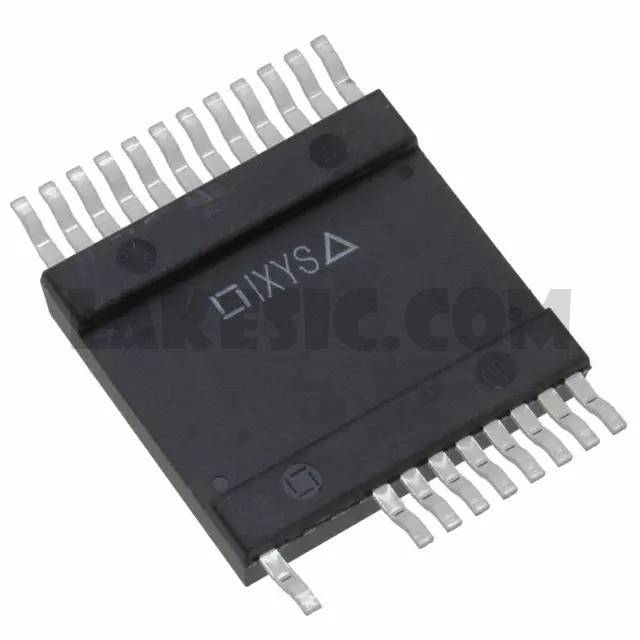

Package / Case	24-PowerSMD, 21 Leads
Supplier Device Package	24-SMPD
Base Part Number	IXG*200N60
