MMSD3070

MMSD3070

Part NumberMMSD3070

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 200V 200MA SOD123

DatasheetMMSD3070

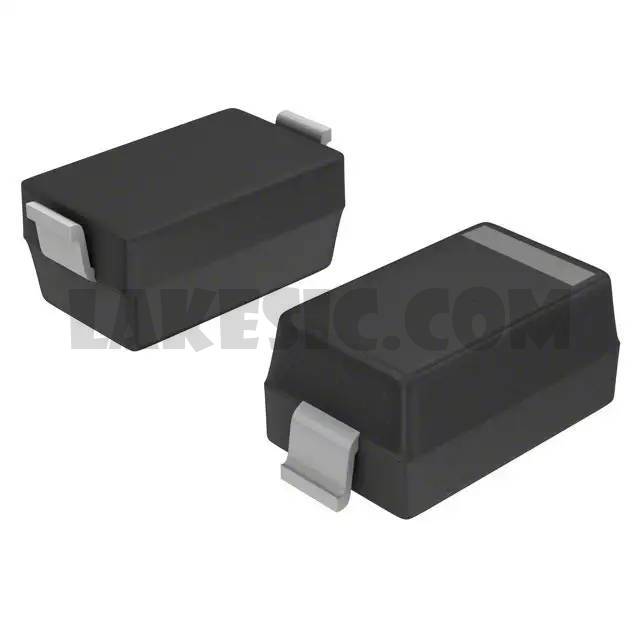

Package / CaseSOD-123

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 200V 200mA Surface Mount SOD-123

To learn about the specification of MMSD3070, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MMSD3070 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MMSD3070.
We are offering MMSD3070 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MMSD3070 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MMSD3070
Standard Package	1
Manufacturer	ON Semiconductor
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	200V
Current - Average Rectified (Io)	200mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	50ns
Current - Reverse Leakage @ Vr	100nA @ 175V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123
Supplier Device Package	SOD-123
Operating Temperature - Junction	150°C (Max)
Base Part Number	MMSD3070
