Categories	Discrete Semiconductor Products / Diodes - Zener - Single
Datasheet	MMSZ52zzzT1G, SZMMSZ52zzzT1G Series
Standard Package	1
Manufacturer	ON Semiconductor
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Voltage - Zener (Nom) (Vz)	5.1V
Tolerance	±5%
Power - Max	500mW
Impedance (Max) (Zzt)	17 Ohms
Current - Reverse Leakage @ Vr	5µA @ 2V
Voltage - Forward (Vf) (Max) @ If	900mV @ 10mA
Operating Temperature	-55°C ~ 150°C
Mounting Type	Surface Mount

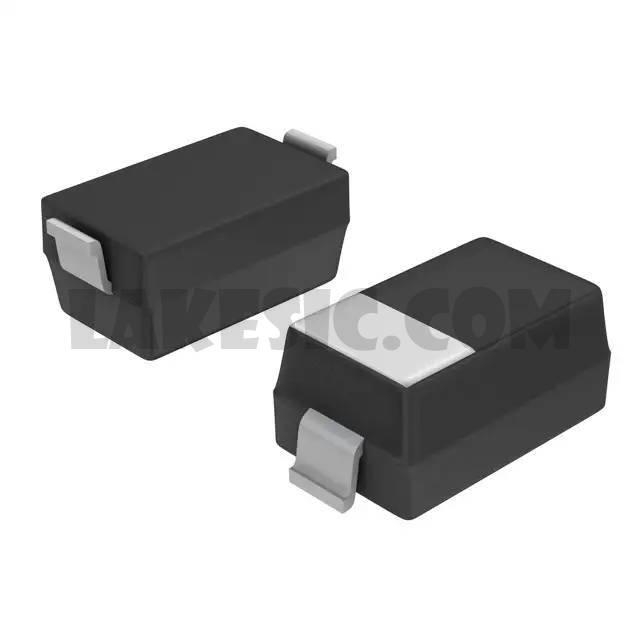

Package / Case	SOD-123
Supplier Device Package	SOD-123
Base Part Number	MMSZ5231B

MMSZ2V4T1G	ON Semiconductor, Zener Diode 2.4V 500mW ±5% Surface Mount SOD-123,	View
MMSZ4681T1G	ON Semiconductor, Zener Diode 2.4V 500mW ±5% Surface Mount SOD-123,	View
MMSZ5250BT1G	ON Semiconductor, Zener Diode 20V 500mW ±5% Surface Mount SOD-123,	View
SZMMSZ5236BT1G	ON Semiconductor, Zener Diode 7.5V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View
SZMMSZ5245BT1G	ON Semiconductor, Zener Diode 15V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View
MMSZ4682T1G	ON Semiconductor, Zener Diode 2.7V 500mW ±5% Surface Mount SOD-123,	View
SZMMSZ5241BT1G	ON Semiconductor, Zener Diode 11V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View
MMSZ5268BT1G	ON Semiconductor, Zener Diode 82V 500mW ±5% Surface Mount SOD-123,	View
SZMMSZ5225BT1G	ON Semiconductor, Zener Diode 3V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View
SZMMSZ4699T1G	ON Semiconductor, Zener Diode 12V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View
MMSZ4709T1G	ON Semiconductor, Zener Diode 24V 500mW ±5% Surface Mount SOD-123,	View
SZMMSZ4686T1G	ON Semiconductor, Zener Diode 3.9V 500mW ±5% Surface Mount SOD-123, Automotive, AEC-Q101	View

MMSZ5231BT1G

Part NumberMMSZ5231BT1G
