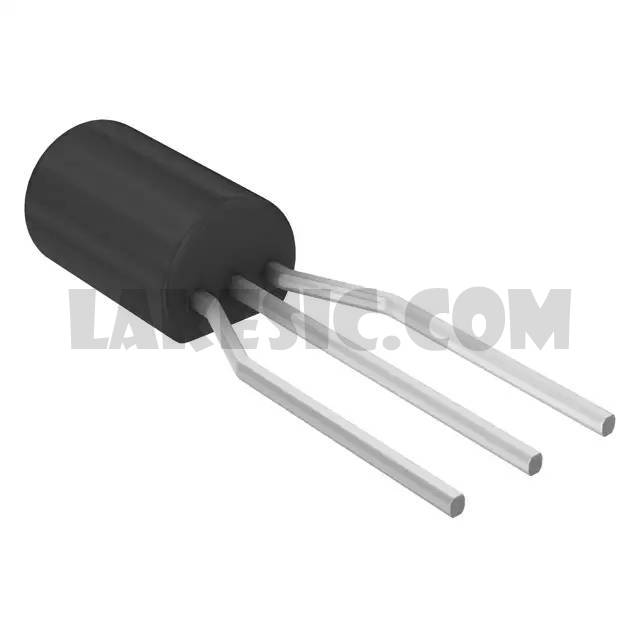

MPSW45A

Part NumberMPSW45A

ManufacturerON Semiconductor

DescriptionTRANS NPN DARL 50V 1A TO92

DatasheetMPSW45(A)

Package / CaseTO-226-3, TO-92-3 Long Body

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN - Darlington 50V 1A 100MHz 1W Through Hole TO-92 (TO-226)

To learn about the specification of MPSW45A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MPSW45A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MPSW45A.
We are offering MPSW45A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MPSW45A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single

Datasheet

MPSW45(A)

Standard Package

5000

Manufacturer

ON Semiconductor

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN - Darlington

Current - Collector (Ic) (Max)

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1.5V @ 2mA, 1A

Current - Collector Cutoff (Max)

100nA (ICBO)

DC Current Gain (hFE) (Min) @ Ic, Vce

25000 @ 200mA, 5V

Power - Max

Frequency - Transition

100MHz

Operating Temperature

-55°C ~ 150°C (TJ)

Mounting Type

Through Hole

Package / Case

TO-226-3, TO-92-3 Long Body

Supplier Device Package

TO-92 (TO-226)

Base Part Number

MPSW45A
