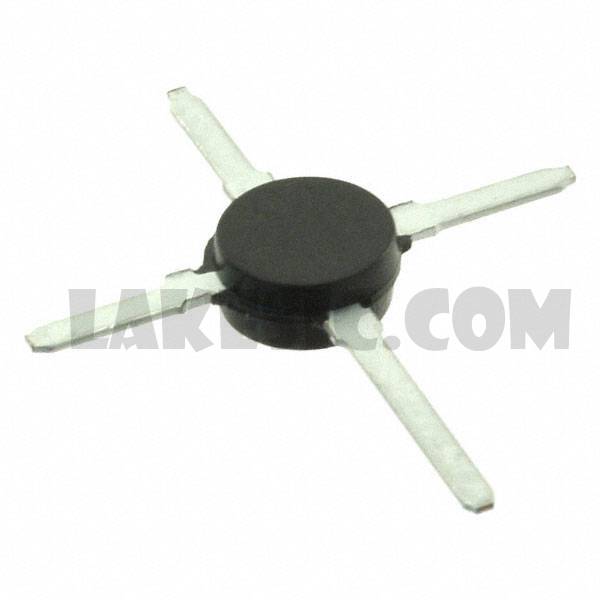

MRF581AG

Part NumberMRF581AG

ManufacturerMicrosemi Corporation

DescriptionRF TRANS NPN 15V 5GHZ MACRO X

DatasheetMRF581(A,G,AG)

Package / CaseMacro-X

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 15V 200mA 5GHz 1.25W Surface Mount Macro-X

To learn about the specification of MRF581AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MRF581AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MRF581AG.
We are offering MRF581AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MRF581AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF

Datasheet

MRF581(A,G,AG)

Standard Package

500

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Obsolete

Transistor Type

NPN

Voltage - Collector Emitter Breakdown (Max)

15V

Frequency - Transition

5GHz

Noise Figure (dB Typ @ f)

3dB ~ 3.5dB @ 500MHz

Gain

13dB ~ 15.5dB

Power - Max

1.25W

DC Current Gain (hFE) (Min) @ Ic, Vce

90 @ 50mA, 5V

Current - Collector (Ic) (Max)

200mA

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

Macro-X

Supplier Device Package
