Categories	Discrete Semiconductor Products / Diodes - Bridge Rectifiers
Datasheet	MSB30M
Standard Package	1
Manufacturer	Diodes Incorporated
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Single Phase
Technology	Standard
Voltage - Peak Reverse (Max)	1kV
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 3A
Current - Reverse Leakage @ Vr	5µA @ 1000V
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

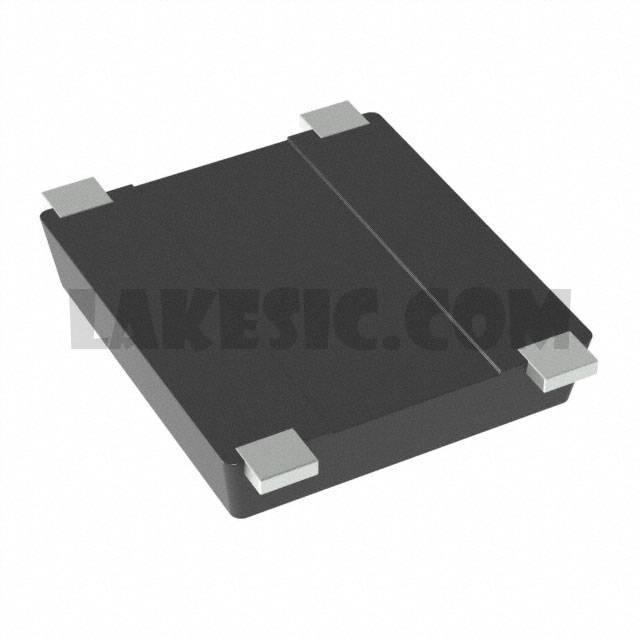

Package / Case	4-SMD, Flat Leads
Supplier Device Package	4-MSBL
