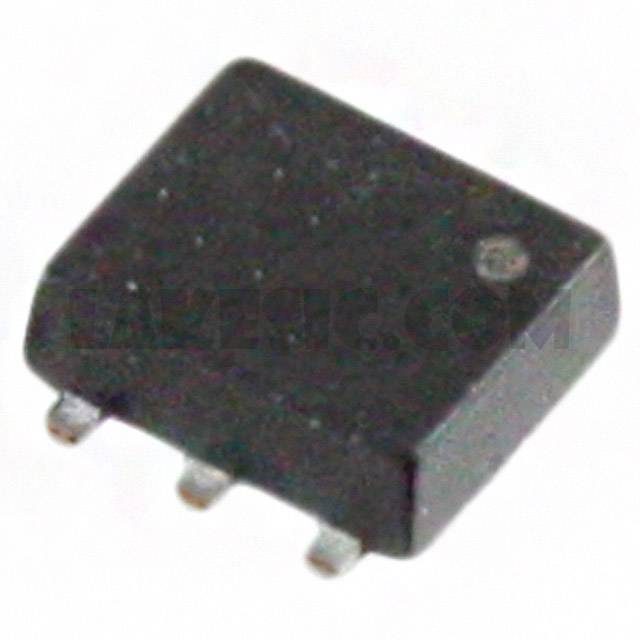

MTM761110LBF

MTM761110LBF

Part NumberMTM761110LBF

ManufacturerPanasonic Electronic Components

DescriptionMOSFET P-CH 12V 4A WSMINI6

DatasheetMTM761110LBF

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionP-Channel 12V 4A (Ta) 700mW (Ta) Surface Mount WSMini6-F1-B

To learn about the specification of MTM761110LBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MTM761110LBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MTM761110LBF.
We are offering MTM761110LBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MTM761110LBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	MTM761110LBF
Standard Package	3000
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	P-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	4A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	1.8V, 4.5V
Rds On (Max) @ Id, Vgs	34mOhm @ 1A, 4.5V
Vgs(th) (Max) @ Id	1V @ 1mA
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	1400pF @ 10V
FET Feature	-
Power Dissipation (Max)	700mW (Ta)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	WSMini6-F1-B
Package / Case	6-SMD, Flat Leads
