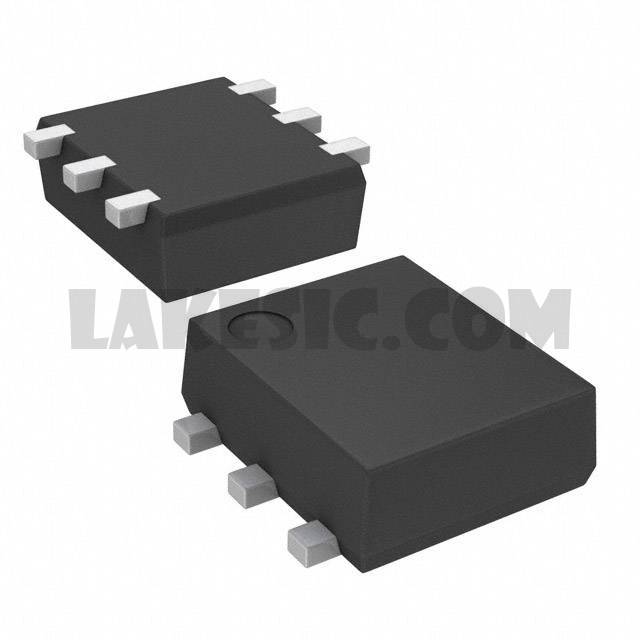

MTM763200LBF

Part NumberMTM763200LBF

ManufacturerPanasonic Electronic Components

DescriptionMOSFET N/P-CH 20V WSMINI6-F1

DatasheetMTM763200LBF

Package / Case6-SMD, Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array N and P-Channel 20V 1.9A, 1.2A 700mW Surface Mount WSMini6-F1-B

To learn about the specification of MTM763200LBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MTM763200LBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MTM763200LBF.
We are offering MTM763200LBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MTM763200LBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	MTM763200LBF
Standard Package	1
Manufacturer	Panasonic Electronic Components
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N and P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	1.9A, 1.2A
Rds On (Max) @ Id, Vgs	105mOhm @ 1A, 4V
Vgs(th) (Max) @ Id	1.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	280pF @ 10V
Power - Max	700mW
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-SMD, Flat Leads
Supplier Device Package	WSMini6-F1-B
Base Part Number	MTM76320
