Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MUR1510(15,20,40,60)
Standard Package	50
Manufacturer	ON Semiconductor
Series	SWITCHMODE™
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60ns
Current - Reverse Leakage @ Vr	10µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

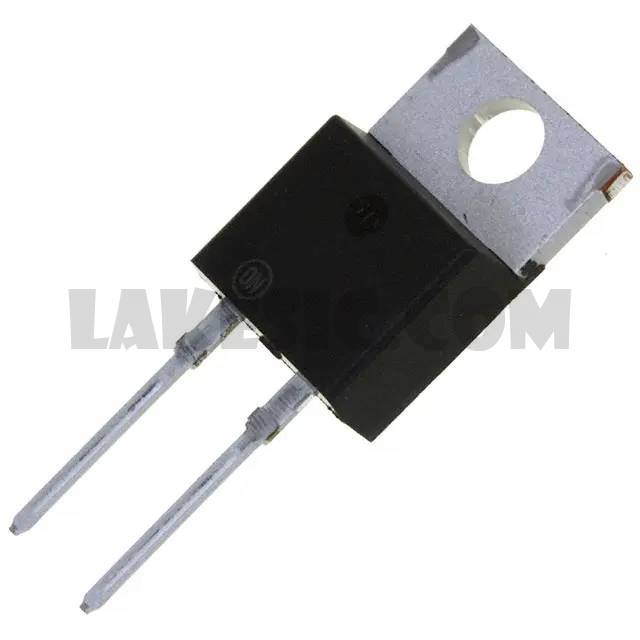

Package / Case	TO-220-2
Supplier Device Package	TO-220AC
Operating Temperature - Junction	-65°C ~ 175°C
Base Part Number	MUR1560
