MURF1560G

MURF1560G

Part NumberMURF1560G

ManufacturerON Semiconductor

DescriptionDIODE GEN PURP 600V 15A TO220FP

DatasheetMUR1510(15,20,40,60)

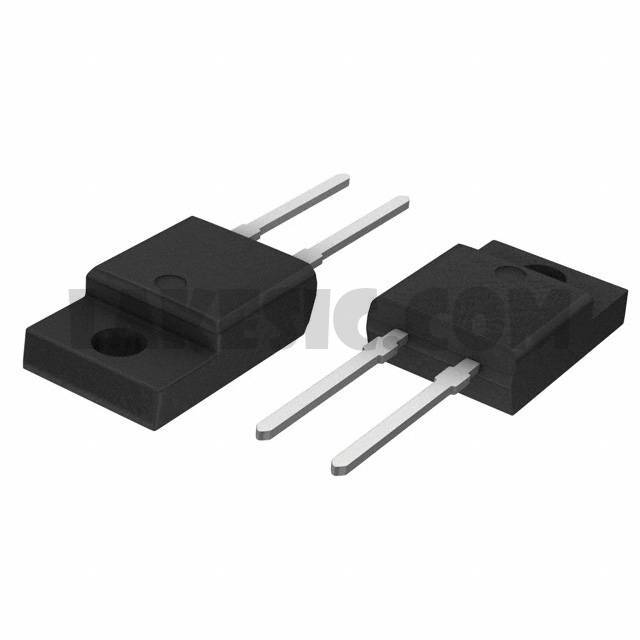

Package / CaseTO-220-2 Full Pack

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Standard 600V 15A Through Hole TO-220FP

To learn about the specification of MURF1560G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MURF1560G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MURF1560G.
We are offering MURF1560G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MURF1560G - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	MUR1510(15,20,40,60)
Standard Package	50
Manufacturer	ON Semiconductor
Series	SWITCHMODE™
Packaging	Tube
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	600V
Current - Average Rectified (Io)	15A
Voltage - Forward (Vf) (Max) @ If	1.5V @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	60ns
Current - Reverse Leakage @ Vr	10µA @ 600V
Capacitance @ Vr, F	-
Mounting Type	Through Hole
Package / Case	TO-220-2 Full Pack
Supplier Device Package	TO-220FP
Operating Temperature - Junction	-65°C ~ 175°C
