Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	NGB8207N,BN-LF
Standard Package	1
Manufacturer	Littelfuse Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	365V
Current - Collector (Ic) (Max)	20A
Current - Collector Pulsed (Icm)	50A
Vce(on) (Max) @ Vge, Ic	2.6V @ 4V, 20A
Power - Max	165W
Switching Energy	-
Input Type	Logic
Td (on/off) @ 25°C	-
Test Condition	-
Mounting Type	Surface Mount

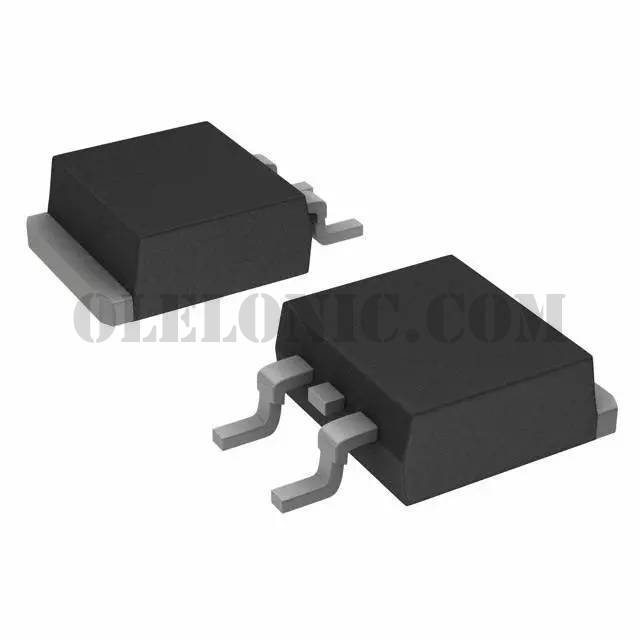

Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
Base Part Number	NGB8207

FGB3040G2-F085	ON Semiconductor, IGBT 400V 41A 150W Surface Mount D²PAK (TO-263), Automotive, AEC-Q101, EcoSPARK®	View
STGB18N40LZT4	STMicroelectronics, IGBT 420V 30A 150W Surface Mount D2PAK, PowerMESH™	View
NGD15N41ACLT4G	Littelfuse Inc., IGBT 440V 15A 107W Surface Mount DPAK,	View
ISL9V3040D3ST	ON Semiconductor, IGBT 430V 21A 150W Surface Mount TO-252AA, EcoSPARK®	View
NGB8207BNT4G	Littelfuse Inc., IGBT 365V 20A 165W Surface Mount D2PAK,	View
STGD25N40LZAG	STMicroelectronics, IGBT 435V 25A 125W Surface Mount DPAK, Automotive, AEC-Q101	View
FGD3245G2-F085	ON Semiconductor, IGBT 450V 23A 150W Surface Mount TO-252AA, Automotive, AEC-Q101, EcoSPARK®	View
ISL9V5036P3-F085	ON Semiconductor, IGBT 390V 46A 250W Through Hole TO-220-3, Automotive, AEC-Q101, EcoSPARK®	View
ISL9V3040S3ST	ON Semiconductor, IGBT 430V 21A 150W Surface Mount TO-263AB, EcoSPARK®	View
FGP3040G2-F085	ON Semiconductor, IGBT 400V 41A 150W Through Hole TO-220-3, Automotive, AEC-Q101, EcoSPARK®	View
FGD3325G2-F085	ON Semiconductor, IGBT 250V 41A 150W Surface Mount TO-252, Automotive, AEC-Q101, EcoSPARK®	View
IM818MCCXKMA1	Infineon Technologies, IGBT Through Hole DIP 36x23D,	View

NGB8207BNT4G

Part NumberNGB8207BNT4G
