NJV4030PT1G

NJV4030PT1G

Part NumberNJV4030PT1G

ManufacturerON Semiconductor

DescriptionTRANS PNP 40V 3A SOT223

DatasheetNJT4030P

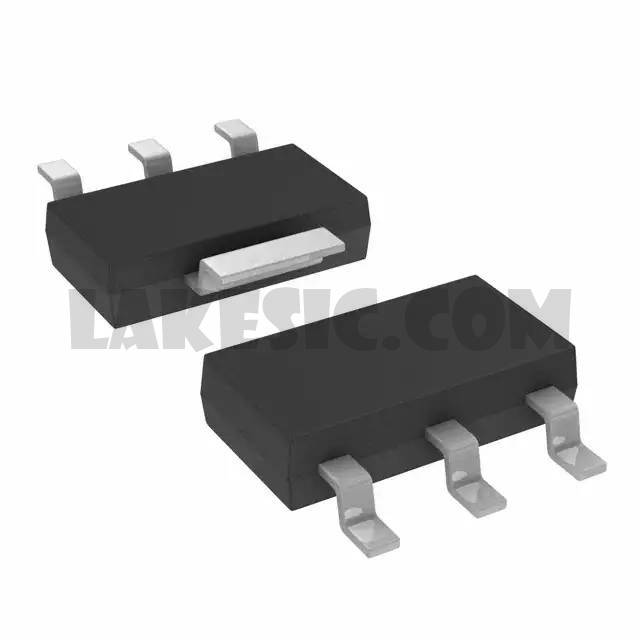

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor PNP 40V 3A 160MHz 2W Surface Mount SOT-223 (TO-261)

To learn about the specification of NJV4030PT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add NJV4030PT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of NJV4030PT1G.
We are offering NJV4030PT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

NJV4030PT1G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	NJT4030P
Standard Package	1000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	PNP
Current - Collector (Ic) (Max)	3A
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	500mV @ 300mA, 3A
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	200 @ 1A, 1V
Power - Max	2W
Frequency - Transition	160MHz
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223 (TO-261)
